Overall view of Sangyie Technology's Hygienic sight glasses

Sight glasses 3A, 316L Stainless Steel

SY-SGL

Sangyie Tubular sight glasses are used to observe the fluid status (e.g. level, flow, impurities) in pipelines and vessels to ensure process safety. Consisting of pressure-resistant glass, metal flanges and seals, they are suitable for petrochemical, pharmaceutical, food and energy industries, providing real-time monitoring and early warning of faults.

Quantity:

Contact Now

Tubular sight glasses Technical features
● 360 degree view angle

● Pressure- and temperature-resistant design
● Easy to install, calibrate, and service

Tubular sight glasses Technical parameters

Stock size	1” ~ 5”, DN25 ~ DN125
Working temperature	Silicon, -10 ~ 120°C,14 ~ 248°F Other materials are available upon request
Pipe joint standard	DIN, SMS, BS / RJT, ISO / IDF, ASME / BPE
Connection type	welded, clamped

Materials

● Medium AISI-304, AISI-316L(EN 1.4404, EN 1.4435)

● Tempered glass

● Gasket:Silicon, EPDM, FRM

Tubular sight glasses data sheet

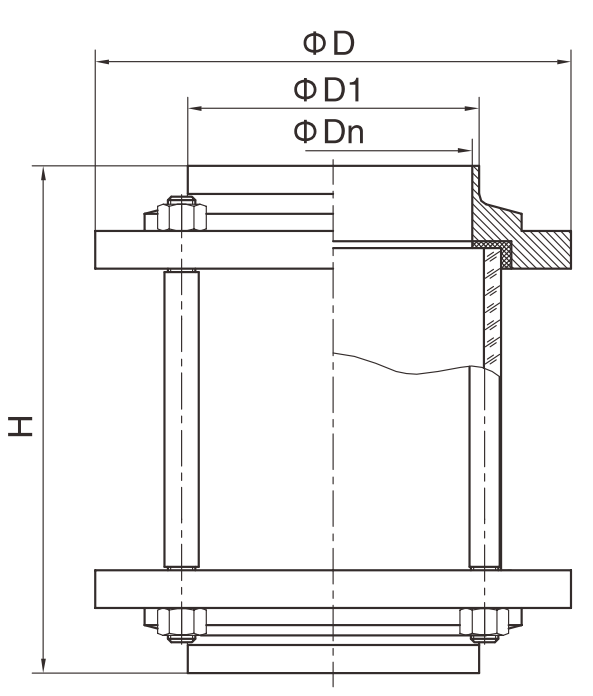

weld tubular sight glass

Model	SIZE	H	D	D1	Dn
SY-SGT116E10100	1″	144	78	25.4	22.4
SY-SGT116E10125	1¼″	144	80	31.8	38.8
SY-SGT116E10150	1½″	144	80	38.1	35.1
SY-SGT116E10200	2″	144	100	50.8	48.8
SY-SGT116E10250	2½″	144	117	63.5	59.5
SY-SGT116E10300	3″	150	129	76.2	72.2
SY-SGT116E10350	3½″	150	140	89	85
SY-SGT116E10400	4″	156	160	101.6	97.6
SY-SGT116E20020	DN20	140.5	78	22	19
SY-SGT116E20025	DN25	140.5	78	28	25
SY-SGT116E20032	DN32	140.5	82	34	31
SY-SGT116E20040	DN40	140.5	88	40	37
SY-SGT116E20050	DN50	140.5	102	52	49
SY-SGT116E20065	DN65	149	124	70	66
SY-SGT116E20080	DN80	151	139	85	81
SY-SGT116E20100	DN100	155	154	104	100
SY-SGT116E20125	DN125	158	185	129	125

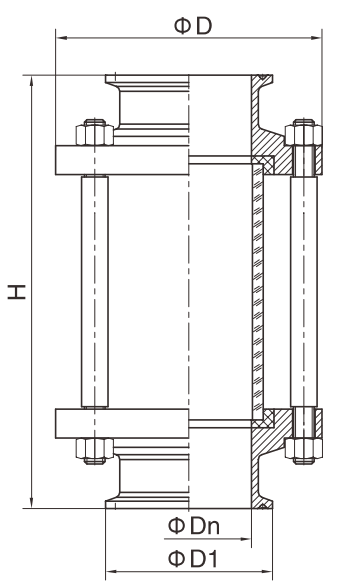

mirilla tubular sujetada

Hygienic sight glasses,Sanitary sight glasses,Hygienic SS sight glasses, sanitary pipeline accessories, high purity tank accessories, high purity pipeline accessories, sanitary tank accessories sanitary accessories

Model	SIZE	H	D	D1	Dn
SY-SGT226E10100	1"	156	78	50.5	22.4
SY-SGT226E10125	1¼"	156	78	50.5	28.8
SY-SGT226E10150	1½"	160	86	50.5	35.1
SY-SGT226E10200	2'	164	102	64	47.8
SY-SGT226E10250	2½"	168	115	77.5	59.5
SY-SGT226E10300	3'	172	124	91	72.2
SY-SGT226E10350	3½"	175	140	106	84.9
SY-SGT226E10400	4"	188	154	119	97.6
SY-SGT226E20020	DN20	159	78	34	19
SY-SGT226E20025	DN25	159	78	50.5	25
SY-SGT226E20032	DN32	163	82	50.5	31
SY-SGT226E20040	DN40	163	88	50.5	37
SY-SGT226E20050	DN50	165	100	64	49
SY-SGT226E20065	DN65	169	127	91	66
SY-SGT226E20080	DN80	175	140	106	81
SY-SGT226E20100	DN100	179	160	119	100
