Overall view of Sangyie Technology's Hygienic Inline mixers

Hygienic Inline Mixers Homogenizers 316L Stainless Steel

SY-ILM

Sangyie Hygienic Inline Mixers Homogenizers are equipment for pumping, mixing, dispersing, homogenizing and emulsifying. With hygienic design and finely polished internal surface, Hygienic Inline Mixers Homogenizers are widely used for heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries, especially used in existing plants. They can work together with a recirculation tank to reach the best efficiency after several passes of the media through the mixers.

Quantity:

Contact Now

Hygienic Inline Mixer Homogenizer Operating principles

Main functioning parts of hygienic Inline high shear mixers homogenizers are rotors and stators. Under centrifugal force and hydraulic force caused by fast rotation of the rotor, the stator subject the media to strong shear, centrifugal extrusion, impact rupture, liquid layer friction and uniform turbulence. In this way, the insoluble solid media, liquid media, gaseous media and other media are instantly uniformly fine, dispersed and emulsified. Hygienic In-line high shear mixer Homogenizer can work together with a recirculation tank to reach the best efficiency after several passes of the media through the mixers.

Hygienic Inline Mixer Homogenizer Technical features

● High efficiency

● Media high sheared to less than 300 microns

● Reliable operation

● Low noise

● Easy maintenance

● Flexible configuration

● Hygienic stainless steel design

Main points for selecting model of Hygienic In-line high shear mixer Homogenizer

●Material of original liquid and solid

●Viscosity of mixed medium

●Size of the solid particle

●Flow rate

●Outlet pressure

Materials

● Parts contacting with medium EN 1.4301 (AISI 304), EN 1.4404, EN 1.4435(AISI 316L)

● Mechanical seal SIC/C/EPDM, SIC/C/FKM, SIC/C/HNBR, SIC/SIC/EPDM, SIC/SIC/FKM, SIC/SIC/HNBR, TC/TC/EPDM, TC/TC/FKM, TC/TC/HNBR

● O-ring EPDM, FKM, HNBR

Hygienic Inline Mixer Homogenizer Technical specification

Max flow rate	50m3/H
Max pressure	2bar, 29psi
Max rotation speed	2950RPM
Medium temperature	-20 ~ 140°C, -4 ~ 284°F
Mechanical seal	single mechanical seal, cool water flushing mechanical seal, double mechanical seal
Inlet & outlet connection type	clamped, threaded, flanged, or others upon request
Inlet & outlet size	1 1/4" ~ 5", DN25 ~ DN125
Motor power	2.2KW ~ 90KW

Hygienic Inline Mixer Homogenizer Performance selection table

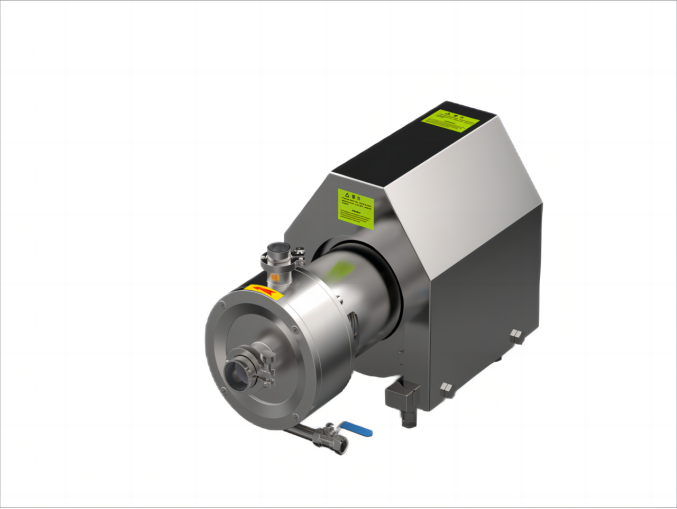

Hygienic Inline mixers, Inline Homogenizers, Sanitary Inline mixe Homogenizers, high shear mixers, sanitary mixers, hygienic mixers, SS mixers

performance selection table
Model no	Motor power	Rotation speed	Flow	Max outlet pressure		Inlet & outlet size
Model no	KW	RPM	m³/h	bar	psi	in
SY-ILM1002	1.5	2950	1.5	2	29	1.5/1.5
SY-ILM1003	2.2		3	2	29	2/1.5
SY-ILM1004	4		4	2	29	2/1.5
SY-ILM1005	5.5		5	2	29	2/1.5
SY-ILM1008	7.5		8	2	29	2.5/2
SY-ILM1012	11		12	2	29	3/2.5
SY-ILM1020	15		20	2	29	3.5/3
SY-ILM1025	22		25	2	29	3.5/3
SY-ILM1035	30		35	2	29	4/3
SY-ILM1050	45		50	2	29	4/3
SY-ILM1075	55		75	2	29	4/3
SY-ILM1090	75		90	2	29	5/4
SY-ILM1110	90		110	2	29	6/5

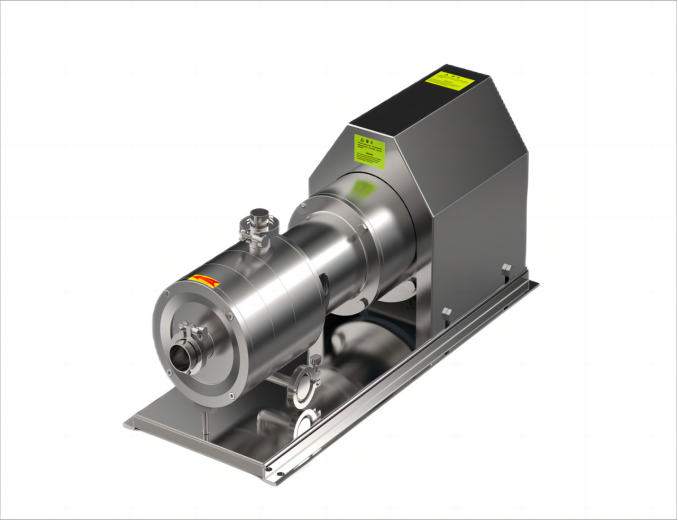

Mezcladores higiénicos en línea, homogenizadores en línea, homogenizadores de mezcla en línea sanitaria, mezcladores de alta cizalladura, mezcladores sanitarios, mezcladores higiénicos, mezcladores SS

performance selection table
Model no	Motor power	Rotation speed	Flow	Max outlet pressure		Inlet & outlet size
Model no	KW	RPM	m³/h	bar	psi	in
SY-ILM3002	4.0	2950	1.5	2	29	2/1.5
SY-ILM3003	5.5		3	2	29	2/1.5
SY-ILM3004	7.5		4	2	29	2/1.5
SY-ILM3005	15		5	2	29	2.5/2
SY-ILM3008	18.5		8	2	29	3/2.5
SY-ILM3012	22		12	2	29	3/2.5
SY-ILM3020	30		20	2	29	3.5/3
SY-ILM3025	45		25	2	29	4/3
SY-ILM3035	55		35	2	29	4/3
SY-ILM3050	75		50	2	29	5/4
SY-ILM3075	90		75	2	29	6/5

Options

● Multi stage

● Double mechanical seal

● Cool water flushing mechanical seal

● With cart

● With console

● With motor protective cover

● With hopper
