Sanitary high shear tank bottom mixer 316L Stainless Steel
SY-TBM
Sangyie Sanitary stainless steel high shear tank bottom mixers are mainly used for open or closed small tanks at atmospheric pressure or under pressure / vacuum. Without contamination to media, Sanitary stainless steel high shear tank bottom mixers are ideal forfood-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Sanitary stainless steel high shear tank bottom mixers are designed for media in high viscosity, recommended to work together with anchor type agitators.
Sanitary stainless steel high shear tank bottom mixers are designed for media in high viscosity, recommended to work together with anchor type agitators.
Quantity:
Sangyie Sanitary stainless steel high shear tank bottom mixers are mainly used for open or closed small tanks at atmospheric pressure or under pressure / vacuum. Without contamination to media, Sanitary stainless steel high shear tank bottom mixers are ideal for food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Sanitary stainless steel high shear tank bottom mixers are designed for media in high viscosity, recommended to work together with anchor type agitators.
Sanitary stainless steel high shear tank bottom mixer Technical features
● Easily interchangeable with different stators and rotors
● Media high sheared to less than 100 microns
● No contamination to media
● High efficiency
● Stable operation
● Low noise
● Easy maintenance
● Easy cleaning and sterilization (CIP/SIP)
● Flexible configuration
● Hygienic stainless steel design
Main points for selecting model of Hygienic high shear tank bottom mixer
● Material of original liquid and solid
● Viscosity of mixed medium
● Size of the solid particle
● Volume of the tank / vessel
Materials
● Parts contacting with medium EN 1.4301 (AISI 304), EN 1.4404, EN 1.4435(AISI 316L)
● Mechanical seal SIC/C/EPDM, SIC/C/FKM, SIC/C/HNBR, SIC/SIC/EPDM, SIC/SIC/FKM, SIC/SIC/HNBR, TC/TC/EPDM, TC/TC/FKM, TC/TC/HNBR
● O-ring EPDM, FKM, HNBR
Sanitary stainless steel high shear tank bottom mixer Technical specification
Max tank volume | 10000L |
Max rotation speed | 2950RPM |
Medium temperature | -10 ~ 170°C, -4 ~ 338°F |
Mechanical seal | single mechanical seal, double mechanical seal |
Motor power | 2.2KW ~ 90KW |
Sanitary stainless steel high shear tank bottom mixer Performance selection table
| performance selection table | |||
| Model no | Motor power | Rotation speed | Tank volume |
| KW | RPM | L | |
| SY-TBM0088 | 2.2 | 2950 | 50-200 |
| SY-TBM0120 | 4.0 | 100-300 | |
| SY-TBM0140 | 7.5 | 300-800 | |
| SY-TBM0160 | 11 | 500-1000 | |
| SY-TBM0165 | 18.5 | 500-1500 | |
| SY-TBM0180 | 22 | 1450 | 1000-2000 |
| SY-TBM0200 | 37 | 1500-3000 | |
| SY-TBM0220 | 55 | 2000-5000 | |
| SY-TBM0240 | 90 | 3000-10000 | |

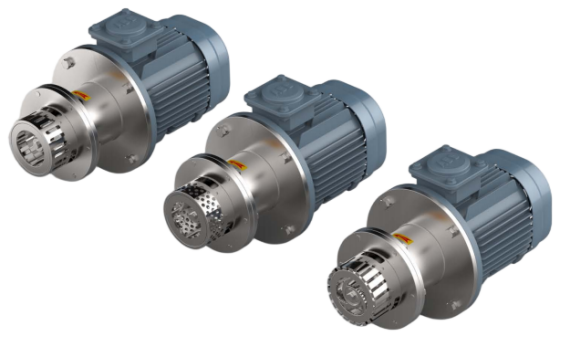

Sanitary stainless steel high shear tank bottom mixer Rotor and stator type
 |  |  |  |
| A type | B type | C Type | D type |

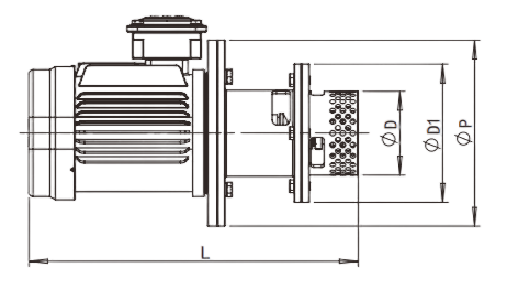

Sanitary stainless steel high shear tank bottom mixer data sheet
| Model no | D | D1 | P | L |
| SY-TBM0088 | 88 | 145 | 200 | 500 |
| SY-TBM0120 | 120 | 220 | 250 | 550 |
| SY-TBM0140 | 140 | 240 | 300 | 645 |
| SY-TBM0160 | 160 | 270 | 350 | 770 |
| SY-TBM0165 | 165 | 280 | 350 | 780 |
| SY-TBM0180 | 180 | 300 | 350 | 860 |
| SY-TBM0200 | 200 | 320 | 400 | 930 |
| SY-TBM0220 | 220 | 340 | 400 | 950 |
| SY-TBM0240 | 240 | 360 | 450 | 950 |
