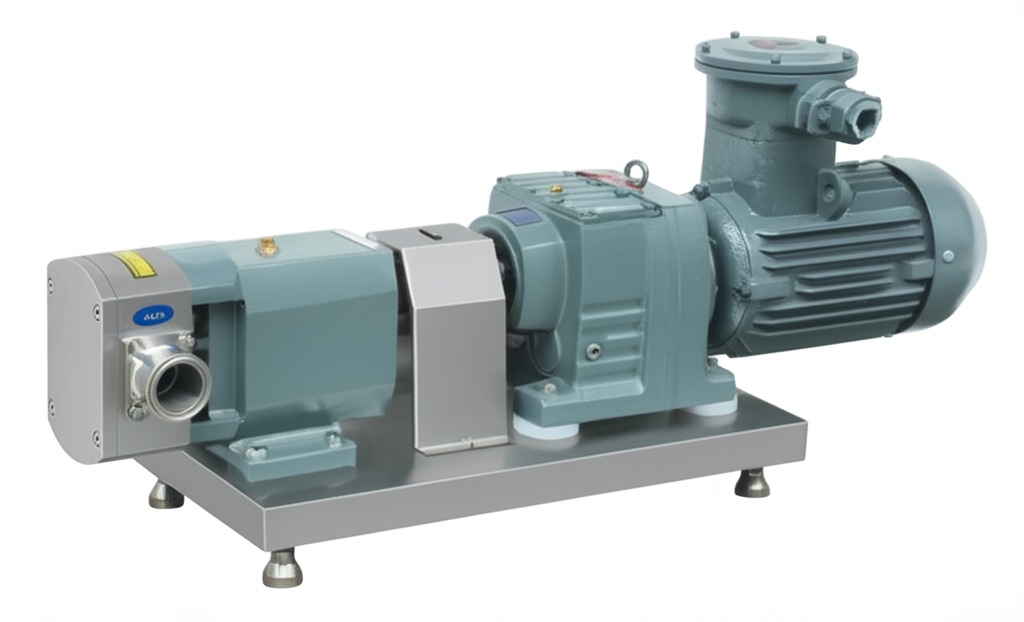

Hygienic rotor lobe pump 316L Stainless Steel
SY-RLP
Sangyie Hygienic rotor lobe pumps are positive displacement pumps, designed for gentle transportation of process fluids in food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries. Hygienic rotor lobe pumps can pump media with particles, also can be used for CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place).
Quantity:
Sangyie Hygienic rotor lobe pumps are positive displacement pumps, designed for gentle transportation of process fluids in food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries. Hygienic rotor lobe pumps can pump media with particles, also can be used for CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place).
Hygienic rotor lobe pump Technical features
● Easily interchangeable with different rotors
● Easily interchangeable with single mechanical seal and double mechanical seal
● Easy maintenance
● Long service life
● Flexible configuration
● Low pulse
● Bidirectional reversible (Inlet & outlet reversible)
● Can be used for media with particles
Points for selecting model of rotary lobe pump
● Viscosity of medium
● Required flow rate
● Required outlet pressure
● Temperature of medium
● Medium is easily solidified or not
● Content and diameter of particles in medium
Materials
● Parts contacting with medium EN 1.4404, EN 1.4435 (AISI 316L)
●Mechanical seal SIC/SIC/EPDM, SIC/SIC/FKM, SIC/SIC/HNBR, SIC/C/EPDM, SIC/C/FKM, SIC/C/HNBR, TC/TC/EPDM, TC/TC/FKM, TC/TC/HNBR
● O-ring EPDM, FKM, HNBR
Hygienic rotor lobe pump Technical specification
| Max flow rate | 43m3/H |
| Max pressure | 10bar, 145psi |
| Max rotation speed | 750RPM |
| Medium temperature | -20 ~ 150°C, -4 ~ 302°F |
| Max Sterilization temperature | 180°C, 356°F |
| Mechanical seal | single mechanical seal, cool water flushing mechanical seal, double mechanical seal, cool oil flushing mechanical seal |
| Inlet & outlet direction | horizontal, vertical |
| Inlet & outlet connection type | clamped, threaded, flanged, or others upon request |
| Inlet & outlet size | 1" ~ 4", DN25 ~ DN100 |
| Surface finish | Ra16-32µin (0.4-0.8µm) |
| Motor power | 0.37KW ~ 22KW |
Hygienic rotor lobe pump Performance selection table
performance selection table | |||||||
Model no | Displacement | Max outlet pressure | Recommended rotation speed | Flow according to speed | Motor power | Inlet & outlet size | |
L/rev | bar | psi | RPM | m³/h | KW | in | |
SY-RLP003 | 0.03 | 10 | 145 | 50-500 | 0.09-0.9 | 0.37-0.55 | 1 |
SY-RLP006 | 0.06 | 10 | 145 | 50-500 | 0.18-1.8 | 0.55-0.75 | 1 |
SY-RLP008 | 0.08 | 10 | 145 | 50-500 | 0.24-2.4 | 0.75-1.5 | 1.5 |
SY-RLP012 | 0.12 | 10 | 145 | 50-500 | 0.36-3.6 | 1.5-2.2 | 1.5 |
SY-RLP020 | 0.2 | 10 | 145 | 50-500 | 0.60-6.0 | 2.2-3.0 | 2 |
SY-RLP030 | 0.3 | 10 | 145 | 50-400 | 0.90-7.2 | 2.2-4.0 | 2 |
SY-RLP036 | 0.36 | 10 | 145 | 50-400 | 1.08-8.64 | 3.0-5.5 | 2 |
SY-RLP052 | 0.52 | 10 | 145 | 50-400 | 1.56-12.48 | 3.0-5.5 | 2.5 |
SY-RLP066 | 0.66 | 10 | 145 | 50-400 | 1.98-15.84 | 4.0-5.5 | 3 |
SY-RLP078 | 0.78 | 10 | 145 | 50-400 | 2.34-18.72 | 5.5-7.5 | 3 |
SY-RLP100 | 1.0 | 10 | 145 | 50-400 | 3.0-24.0 | 7.5-11 | 3.5 |
SY-RLP160 | 1.6 | 10 | 145 | 50-400 | 4.8-38.4 | 11-15 | 3.5 |
SY-RLP200 | 2.0 | 10 | 145 | 50-400 | 6.0-48.0 | 15-18.5 | 3.5 |
SY-RLP300 | 3.0 | 10 | 145 | 50-400 | 9.0-72.0 | 18.5-22 | 4 |
SY-RLP400 | 4.0 | 10 | 145 | 50-400 | 12.0-96.0 | 22-30 | 5 |
SY-RLP500 | 5.0 | 10 | 145 | 50-400 | 15.0-120.0 | 30-45 | 6 |
SY-RLP600 | 6.0 | 10 | 145 | 50-400 | 18.0-144.0 | 37-55 | 8 |
Hygienic rotor lobe pump Rotor selection
 | single leaf rotor | used for mediums with particles in large size with low breakage, large pulse, low pressure |
 | double leaves rotor | used for mediums with particles, low breakage, small pulse |
 | triple leaves rotor | recommend to use this rotor, performance is superior to single leaf rotor and double leaves rotor, smaller pulse than double leaves rotor |
 | multi leaves rotor | performance is much stable than the other rotors, while is easy to break the particles |

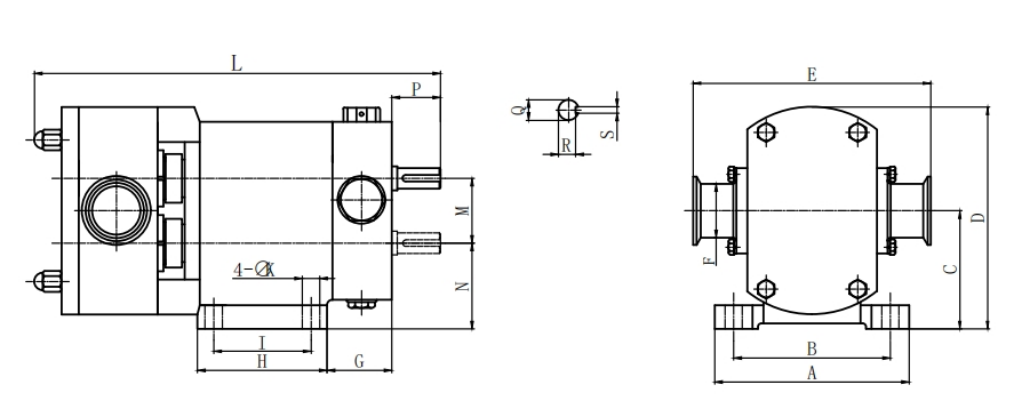

Hygienic rotor lobe pump data sheet
| Model no | A | B | C | D | E | F | G | H | I | K | L | M | N | P | Q | R | S |
| SY-RLP003 | 130 | 110 | 76 | 146 | 150 | 25 | 25 | 77 | 55 | 10 | 234 | 44 | 54 | 33 | 15 | 12 | 5 |
| SY-RLP006 | 160 | 135 | 100 | 184 | 185 | 25 | 53 | 95 | 70 | 10 | 278 | 52 | 73 | 40 | 18 | 14.5 | 6 |
| SY-RLP008 | 160 | 135 | 100 | 184 | 185 | 38 | 53 | 95 | 70 | 10 | 288 | 52 | 73 | 40 | 18 | 14.5 | 6 |
| SY-RLP012 | 180 | 145 | 110 | 206 | 210 | 38 | 55 | 120 | 82 | 12 | 354 | 60 | 80 | 42 | 19 | 15.5 | 6 |
| SY-RLP020 | 180 | 145 | 110 | 206 | 210 | 51 | 55 | 120 | 82 | 12 | 376 | 60 | 80 | 42 | 19 | 15.5 | 6 |
| SY-RLP030 | 210 | 180 | 130 | 244 | 225 | 51 | 78 | 135 | 105 | 14 | 414 | 76 | 92 | 57 | 25 | 21 | 8 |
| SY-RLP036 | 210 | 180 | 130 | 244 | 225 | 51 | 78 | 135 | 105 | 14 | 429 | 76 | 92 | 57 | 25 | 21 | 8 |
| SY-RLP052 | 240 | 195 | 130 | 263 | 270 | 76 | 66 | 160 | 125 | 14 | 448 | 84 | 94 | 54 | 32 | 27 | 10 |
| SY-RLP066 | 280 | 240 | 170 | 324 | 305 | 63 | 76 | 170 | 130 | 16 | 507 | 105 | 117 | 70 | 38 | 33 | 12 |
| SY-RLP078 | 280 | 240 | 170 | 324 | 305 | 76 | 76 | 170 | 130 | 16 | 522 | 105 | 117 | 70 | 38 | 33 | 12 |
| SY-RLP100 | 280 | 240 | 170 | 324 | 345 | 89 | 76 | 170 | 130 | 16 | 534 | 105 | 117 | 70 | 38 | 33 | 12 |
Options
● Manual adjustable
● Adjusted by converter
● Double mechanical seal
● Cool water flushing mechanical seal
● With heat jacket
● With cart
● With console
● With motor protective cover
● With external safety valve
● With hopper
