Sanitary stainless steel weld tee 3A, Welded
SY-FTE
Sangyie Sanitary stainless steel weld tees are used for pipelines and equipment that can be cleaned in place (CIP). Normally, Sangyie manufacture weld tees in 1.4301 (AISI 304) or 1.4404 (AISI 316L) from size 1/2" DN10 to size 6" DN150. Sanitary stainless steel weld tees and fittings are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Quantity:
Sangyie Sanitary stainless steel weld tees are used for pipelines and equipment that can be cleaned in place (CIP). Normally, Sangyie manufacture weld tees in EN 1.4301 (AISI 304) or EN 1.4404 & EN 1.4435(AISI 316L) from size 1/2" DN10 to size 6"DN150. Sanitary stainless steel weld tees and fittings are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Sanitary stainless steel weld tee Technical parameters
Stock size | 1/2" ~ 6", DN10 ~ DN150 |
Material | EN 1.4301 (AISI 304), EN 1.4404, EN 1.4435(AISI 316L) |
Surface finish | Mechanical polished, Electro polished, Pickled |
Pipe joint standard | DIN, SMS, BS / RJT, 3A, ISO / IDF |
Connection type | welded |
Sanitary stainless steel weld tee Data sheet

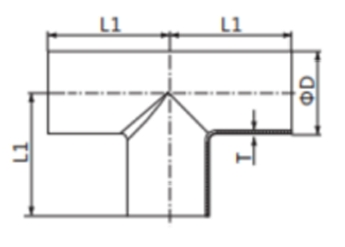

3A short weld equal tee
| Model no | Size | D | L1 | T |
| SY-FTE11611110100 | 1" | 25.4 | 28.6 | 1.65 |
| SY-FTE11611110125 | 1 1/4" | 31.8 | 35 | 1.65 |
| SY-FTE11611110150 | 1 1/2" | 38.1 | 42 | 1.65 |
| SY-FTE11611110200 | 2" | 50.8 | 52.3 | 1.65 |
| SY-FTE11611110250 | 2 1/2" | 63.5 | 59.5 | 1.65 |
| SY-FTE11611110300 | 3" | 76.2 | 65.9 | 1.65 |
| SY-FTE11611110400 | 4" | 101.6 | 87.3 | 2.1 |
| SY-FTE11611110600 | 6" | 152.4 | 127 | 2.77 |

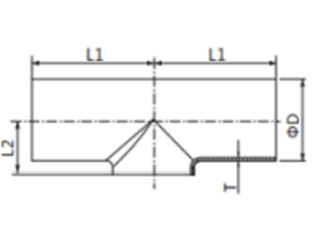

3A short weld tee, short outlet
| Model no | Size | D | L1 | L2 |
| SY-FTE12611110100 | 1" | 25.4 | 28.6 | 15 |
| SY-FTE12611110125 | 1 1/4" | 31.8 | 35 | 18.3 |
| SY-FTE12611110150 | 1 1/2" | 38.1 | 42 | 21.5 |
| SY-FTE12611110200 | 2" | 50.8 | 52.3 | 29 |
| SY-FTE12611110250 | 2 1/2" | 63.5 | 59.5 | 36 |
| SY-FTE12611110300 | 3" | 76.2 | 65.9 | 43 |
| SY-FTE12611110400 | 4" | 101.6 | 87.3 | 57 |
| SY-FTE12611110600 | 6" | 152.4 | 127 | 84.5 |

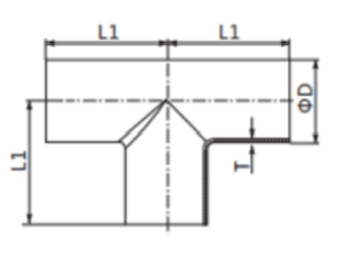

3A long weld equal tee
| Model no | Size | D | L1 | T |
| SY-FTE21611110100 | 1" | 25.4 | 47.6 | 1.65 |
| SY-FTE21611110125 | 1 1/4" | 31.8 | 47.6 | 1.65 |
| SY-FTE21611110150 | 1 1/2" | 38.1 | 57.2 | 1.65 |
| SY-FTE21611110200 | 2" | 50.8 | 76.2 | 1.65 |
| SY-FTE21611110250 | 2 1/2" | 63.5 | 76.2 | 1.65 |
| SY-FTE21611110300 | 3" | 76.2 | 82.6 | 1.65 |
| SY-FTE21611110400 | 4" | 101.6 | 98.4 | 2.1 |
| SY-FTE21611110600 | 6" | 152.4 | 143 | 2.77 |

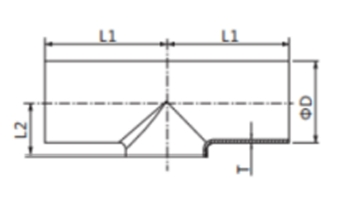

3A long weld tee, short outlet
| Model no | Size | D | L1 | L2 |
| SY-FTE22611110100 | 1" | 25.4 | 47.6 | 15 |
| SY-FTE22611110125 | 1 1/4" | 31.8 | 47.6 | 18.3 |
| SY-FTE22611110150 | 1 1/2" | 38.1 | 57.2 | 21.5 |
| SY-FTE22611110200 | 2" | 50.8 | 76.2 | 29 |
| SY-FTE22611110250 | 2 1/2" | 63.5 | 76.2 | 36 |
| SY-FTE22611110300 | 3" | 76.2 | 82.6 | 43 |
| SY-FTE22611110400 | 4" | 101.6 | 98.4 | 57 |
| SY-FTE22611110600 | 6" | 152.4 | 143 | 84.5 |

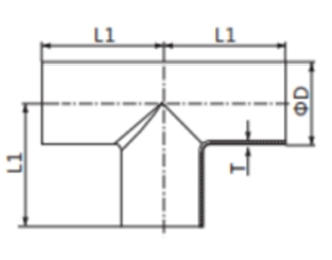

DIN long weld equal tee
| Model no | Size | D | L1 | T |
| SY-FTE21411120010 | DN10 | 46004 | 26 | 1.5 |
| SY-FTE21411120015 | DN15 | 18/19 | 35 | 1.5 |
| SY-FTE21411120020 | DN20 | 22/23 | 40 | 1.5 |
| SY-FTE21411120025 | DN25 | 28/29 | 50 | 1.5 |
| SY-FTE21411120032 | DN32 | 34/35 | 55 | 1.5 |
| SY-FTE21411120040 | DN40 | 40/41 | 60 | 1.5 |
| SY-FTE21411120050 | DN50 | 52/53 | 70 | 1.5 |
| SY-FTE21411120065 | DN65 | 70 | 80 | 2.0 |
| SY-FTE21411120080 | DN80 | 85 | 90 | 2.0 |
| SY-FTE21411120100 | DN100 | 104 | 100 | 2.0 |
| SY-FTE21411120125 | DN125 | 85 | 187 | 2.0 |
| SY-FTE21411120150 | DN150 | 104 | 225 | 2.0 |
DIN long weld tee, short outlet
| Model no | Size | D | L1 | L2 |
| SY-FTE22411120010 | DN10 | 46004 | 26 | 7.5/8 |
| SY-FTE22411120015 | DN15 | 18/19 | 35 | 10.5/10 |
| SY-FTE22411120020 | DN20 | 22/23 | 40 | 12.5/13 |
| SY-FTE22411120025 | DN25 | 28/29 | 50 | 16/16.5 |
| SY-FTE22411120032 | DN32 | 34/35 | 55 | 19.5/20 |
| SY-FTE22411120040 | DN40 | 40/41 | 60 | 22.5/23 |
| SY-FTE22411120050 | DN50 | 52/53 | 70 | 30/30.5 |
| SY-FTE22411120065 | DN65 | 70 | 80 | 39.5 |
| SY-FTE22411120080 | DN80 | 85 | 90 | 47.5 |
| SY-FTE22411120100 | DN100 | 104 | 100 | 58 |
| SY-FTE22411120125 | DN125 | 125 | 187 | 70.5 |
| SY-FTE22411120150 | DN150 | 150 | 225 | 83 |

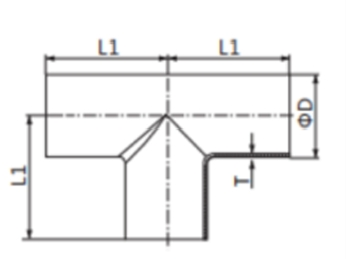

SMS long weld equal tee
| Model no | Size | D | L1 | T |
| SY-FTE21611130025 | 25 | 25.4 | 55 | 1.5 |
| SY-FTE21611130032 | 32 | 31.8 | 62 | 1.5 |
| SY-FTE21611130038 | 38 | 38.1 | 70 | 1.5 |
| SY-FTE21611130051 | 51 | 50.8 | 82 | 1.5 |
| SY-FTE21611130063 | 63.5 | 63.5 | 105 | 2.0 |
| SY-FTE21611130076 | 76 | 76.2 | 110 | 2.0 |
| SY-FTE21611130102 | 102 | 101.6 | 150 | 2.0 |
SMS long weld tee, short outlet
| Model no | Size | D | L1 | L2 |
| SY-FTE22611130025 | 25 | 25.4 | 55 | 15 |
| SY-FTE22611130032 | 32 | 31.8 | 62 | 18.3 |
| SY-FTE22611130038 | 38 | 38.1 | 70 | 21.5 |
| SY-FTE22611130051 | 51 | 50.8 | 82 | 29 |
| SY-FTE22611130063 | 63.5 | 63.5 | 105 | 36 |
| SY-FTE22611130076 | 76 | 76.2 | 110 | 43 |
| SY-FTE22611130102 | 102 | 101.6 | 150 | 57 |

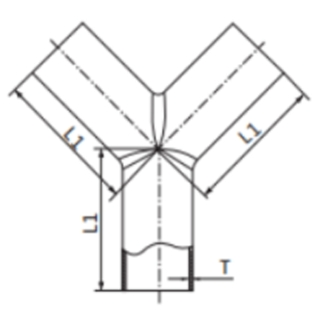

3A Y type tee
| Model no | Size | D | L1 | T |
| SY-FTEE30411110050 | 1/2" | 12.7 | 50.8 | 1.65 |
| SY-FTEE30411110075 | 3/4" | 19.1 | 50.8 | 1.65 |
| SY-FTEE30411110100 | 1" | 25.4 | 76.2 | 1.65 |
| SY-FTEE30411110150 | 1 1/2" | 38.1 | 76.2 | 1.65 |
| SY-FTEE30411110200 | 2" | 50.8 | 101.6 | 1.65 |
| SY-FTEE30411110250 | 2 1/2" | 63.5 | 127 | 1.65 |
| SY-FTEE30411110300 | 3" | 76.2 | 152.4 | 1.65 |
| SY-FTEE30411110400 | 4" | 101.6 | 203.2 | 2.1 |
| SY-FTEE30411110600 | 6" | 152.4 | 203.2 | 2.8 |

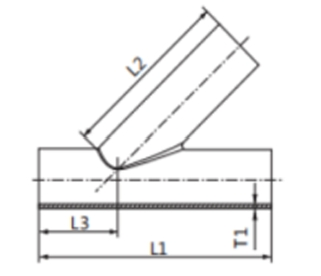

3A 45° lateral tee
| Model no | Size | L1 | L2 | L3 | T1 |
| SY-FTEE40411110100 | 1" | 152.4 | 127 | 25.4 | 1.65 |
| SY-FTEE40411110150 | 1 1/2" | 187.3 | 173.1 | 30.2 | 1.65 |
| SY-FTEE40411110200 | 2" | 222.2 | 180.9 | 41.3 | 1.65 |
| SY-FTEE40411110250 | 2 1/2" | 254 | 215.9 | 43.5 | 1.65 |
| SY-FTEE40411110300 | 3" | 273.1 | 225.4 | 47.7 | 1.65 |
| SY-FTEE40411110400 | 4" | 325.5 | 273.1 | 52.5 | 2.1 |
| SY-FTEE40411110600 | 6" | 419.1 | 317.5 | 101.7 | 2.8 |
