Overall view of Sangyie Technology's sanitary non-retention 3-way ball valve

Sanitary non-retention 3-way ball valve 3A, 316L Stainless Steel

SY-BLVN3
Sangyie Sanitary non-retention 3-way ball valves are versatile and can be used in extreme circumstances, excellent being used to shut off liquid and gaseous media safely at high operating pressure. As media travels between the ball and the body when opening and closing, ball valves are suitable for mechanically pure, inert or corrosive liquids, gases or steam.
Because of hygienic design, Sangyie Sanitary non-retention 3-way ball valves are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Quantity:
Contact Now
SangyieSanitary non-retention 3-way ball valves are versatile and can be used in extreme circumstances,excellent being used to shut off liquid and gaseous media safely at high operating pressure. As media travels between the ball and the body when opening and closing, ball valves are suitable for mechanically pure, inert or corrosive liquids, gases or steam.
Because of hygienic design, Sangyie Sanitary non-retention 3-way ball valves are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.


Sanitary non-retention 3-way ball valve Technical features

● Easily interchangeable with manual handles, pneumatic actuators and electric actuators

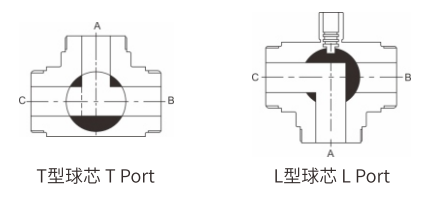

● L-port and T-port can be interchangeable on-site
● Inlet & outlet can be set according to requirement
●Zero dead leg hygienic design, Full cavity without dead point, non-retention
● Complete CIP & SIP adaptability
● High flow rates
● Low pressure drop
● Low flow resistance
● Small torque
● High operating pressure
● High temperature
● Long service life
● Inlet & outlet interchangeable with any connection types
● Economic and simple maintenance, not need professional tools
● Production process complies with 3A, DIN, ISO sanitary valve norms

Sanitary non-retention 3-way ball valve Technical parameters

Stock size
1/2" ~4", DN10 ~ DN100
Temperature
Working temperature
PTFE, -20 ~ 150°C, -4 ~302°F
Other materials are available upon request
Sterilization temperature
200°C, 392°F, Max. 20 min
Working pressure
1/2" ~2 1/2",
DN10 ~ DN65
vacuum to16bar,232psi
3" ~4", DN80 ~ DN100
vacuum to 8bar, 116psi
Surface finish
Internal Ra≤16µin, 0.4µm
Pipe joint standard
DIN, SMS, BS / RJT, 3A, ISO / IDF
Connection type
welded, clamped, threaded, flanged,or others upon request

Materials
●Medium wetted steel parts EN 1.4301 (AISI 304) or EN 1.4404 & EN 1.4435(AISI 316L)
● Other St. St. Parts EN 1.4301 (AISI 304)
●Medium wetted gasket PTFE, EPDM
●Other gasket PTFE, NBR

Options
● Single-acting pneumaticSS vertical actuator
● Double-acting pneumaticSS vertical actuator
● Single-acting pneumatichorizontal aluminum actuator
● Double-acting pneumatichorizontal aluminum actuator
● Electric actuator
● Inductive position sensors
● C-TOP control unit
●Positioner
●Manual handle
● L-port and T-port
Sanitary non-retention 3-way ball valves, Sanitary non-retention 3-way ball valves, Sanitary non-retention 3-way ball valves, sanitary valves, hygienic valves, SS valves

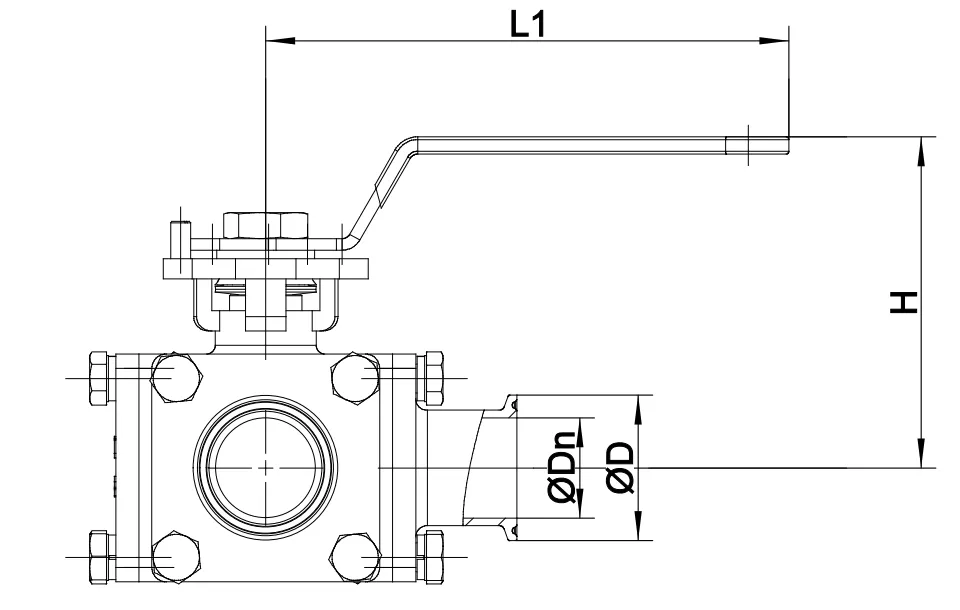

Sanitary non-retention 3-way ball valve Data sheet

Sanitary non-retention 3-way ball valves, Sanitary non-retention 3-way ball valves, Sanitary non-retention 3-way ball valves, sanitary valves, hygienic valves, SS valvesSanitary non-retention 3-way ball valves, Sanitary non-retention 3-way ball valves, Sanitary non-retention 3-way ball valves, sanitary valves, hygienic valves, SS valves
Model noSizeDoDnDLL1H
SY-BLVN31022004E100501/2"12.79.425.411813577
SY-BLVN31022004E100753/4"19.0515.825.412713578
SY-BLVN31022004E101001"25.422.150.515213595
SY-BLVN31022004E101251 1/4"31.828.550.5175181113
SY-BLVN31022004E101501 1/2"38.134.850.5175181113
SY-BLVN31022004E102002"50.847.564201181121
SY-BLVN31022004E102502 1/2"63.560.277.5227181135
SY-BLVN31022004E103003"76.272.991262336140
SY-BLVN31022004E104004"101.697.4119319436150
SY-BLVN31022004E20015DN1518/1915/163411813577
SY-BLVN31022004E20020DN2022/2319/203412713578
SY-BLVN31022004E20025DN2528/2925/2650.515213595
SY-BLVN31022004E20032DN3234/3531/3250.5175181113
SY-BLVN31022004E20040DN4040/4137/3850.5175181113
SY-BLVN31022004E20050DN5052/5349/5064201181121
SY-BLVN31022004E20065DN65706691227181135
SY-BLVN31022004E20080DN808581106262336140
SY-BLVN31022004E20100DN100104100119319436150
Application Sectors
●Dairy industry: Milk storage tanks, yogurt fermentation tanks, cream mixing vessels
●Beverage & food: Juice, wine, beer, syrup, edible oil, sauce processing tanks
●Pharmaceutical & biotech: API preparation tanks, sterile liquid storage, cell culture bioreactors
●Cosmetic & personal care: Lotion, essence, cream, shampoo blending tanks
●Water treatment: Purified water, WFI (Water for Injection) storage and distribution systems
●Cooling systems
Applicable Media
Liquid materials, viscous slurries, low-concentration acid/alkaline cleaning fluids, sterile pure water, fermentation broths, oil-based emulsions, alcohol solvents
Factory Testing Items
● Raw material spectrum inspection for stainless steel components
●Surface roughness detection of all wetted parts
●Water pressure shell strength test at 1.5 times nominal pressure
●Air tightness leakage test for valve cavity and stem
●CIP high-temperature circulation aging simulation test for seals
