Sanitary full cavity ball valve DIN 316L Stainless Steel

SY-BLVN2
Sangyie Sanitary full cavity ball valves are versatile and can be used in extreme circumstances, excellent being used to shut off liquid and gaseous media safely at high operating pressure.
Sanitary full cavity ball valves are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Quantity:
Contact Now
SangyieSanitary full cavity ball valves are versatile and can be used in extreme circumstances,excellent being used to shut off liquid and gaseous media safely at high operating pressure.
Sanitary full cavity ball valves arewidely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.


Sanitary full cavity ball valve Technical features

● Easily interchangeable with manual handles, pneumatic actuators and electric actuators
●Zero dead leg hygienic design, Full cavity without dead point, non-retention
● Complete CIP & SIP adaptability
● High flow rates
● Full port
● Low pressure drop
● Low flow resistance
● Small torque
● High operating pressure
● High temperature
● Long service life
● Inlet & outlet interchangeable with any connection types
● Economic and simple maintenance, not need professional tools
● Production process complies with 3A, DIN, ISO sanitary valve norms


Sanitary full cavity ball valve Technical parameters

Stock size
1/2" ~6", DN10 ~ DN150
Temperature
Working temperature
PTFE, -20 ~ 150°C, -4 ~302°F
Other materials are available upon request
Sterilization temperature
200°C, 392°F, Max. 20 min
Working pressure
1/2" ~2 1/2",
DN10 ~ DN65
vacuum to16bar,232psi
3" ~4", DN80 ~ DN100
vacuum to 8bar, 116psi
5" ~6", DN125 ~ DN150
vacuum to 6bar,87psi
Surface finish
Internal Ra≤16µin, 0.4µm
Pipe joint standard
DIN, SMS, BS / RJT, 3A, ISO / IDF
Connection type
welded, clamped, threaded, flanged,or others upon request

Materials
●Medium wetted steel parts EN 1.4301 (AISI 304) or EN 1.4404 & EN 1.4435(AISI 316L)
● Other St. St. Parts EN 1.4301 (AISI 304)
●Medium wetted gasket PTFE, EPDM
●Other gasket PTFE, NBR

Options
● Single-acting pneumaticSS vertical actuator
● Double-acting pneumaticSS vertical actuator
● Single-acting pneumatichorizontal aluminum actuator
● Double-acting pneumatichorizontal aluminum actuator
● Electric actuator
● Inductive position sensors
● C-TOP control unit
●Positioner
●Manual handle


Sanitary full cavity ball valve Data sheet

                            Sanitary full cavity ball valves, Hygienic full cavity ball valves, Sanitary SS non-retention ball valves, sanitary valves, hygienic valves, SS valves

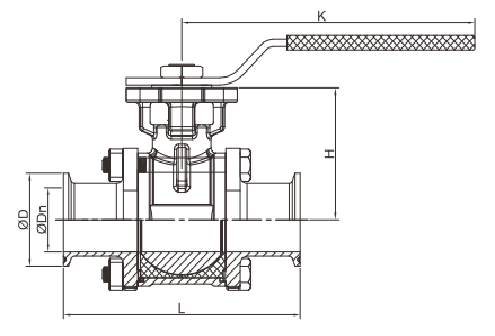

Model noSizeDoDnDLHK
SY-BLVN21022004E100501/2"12.79.425.48938130
SY-BLVN21022004E100753/4"19.0515.825.410142.5130
SY-BLVN21022004E101001"25.422.150.511452.5165
SY-BLVN21022004E101251 1/4"31.828.550.512458.5165
SY-BLVN21022004E101501 1/2"38.134.850.514073215
SY-BLVN21022004E102002"50.847.56415678.5215
SY-BLVN21022004E102502 1/2"63.560.277.519795215
SY-BLVN21022004E103003"76.272.991229111320
SY-BLVN21022004E103503 1/2"88.984.9106229111320
SY-BLVN21022004E104004"101.697.4119241122.5320
SY-BLVN21022004E105005"127121.4145300170500
SY-BLVN21022004E106006"152.4146.8167320186500
SY-BLVN21022004E20010DN1012/139/10348938130
SY-BLVN21022004E20015DN1518/1915/163410142.5130
SY-BLVN21022004E20020DN2022/2319/203410142.5130
SY-BLVN21022004E20025DN2528/2925/2650.511452.5165
SY-BLVN21022004E20032DN3234/3531/3250.512258.5165
SY-BLVN21022004E20040DN4040/4137/3850.514073215
SY-BLVN21022004E20050DN5052/5349/506415678.5215
SY-BLVN21022004E20065DN6570669119795215
SY-BLVN21022004E20080DN808581106229111320
SY-BLVN21022004E20100DN100104100119241122.5320
SY-BLVN21022004E20125DN125129125145300170500
SY-BLVN21022004E20150DN150154150167320186500

Sanitary full cavity ball valve Parts list

Sanitary full cavity ball valves, Hygienic full cavity ball valves, Sanitary SS non-retention ball valves, sanitary valves, hygienic valves, SS valves

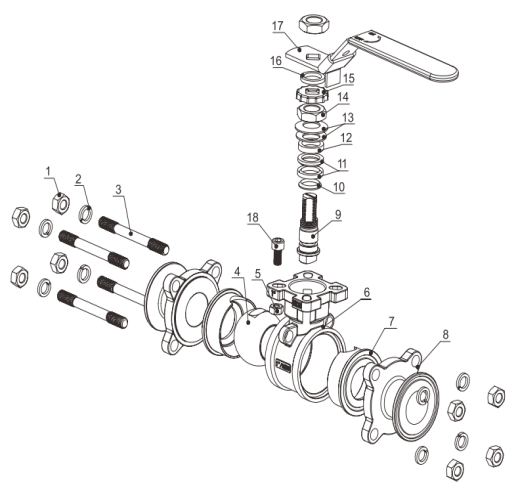

No.DescriptionQuantity
01nut8
02spring washer8
03bolt4
04ball1
05nut1
06valve body1
07valve seat2
08flange2
09valve shaft1
10washer gasket1
11V-seal assembly2
12gasket1
13spring washer2
14nut2
16gasket1
17handle1
18nut1
Application Sectors
●Dairy industry: Milk storage tanks, yogurt fermentation tanks, cream mixing vessels
●Beverage & food: Juice, wine, beer, syrup, edible oil, sauce processing tanks
●Pharmaceutical & biotech: API preparation tanks, sterile liquid storage, cell culture bioreactors
●Cosmetic & personal care: Lotion, essence, cream, shampoo blending tanks
●Water treatment: Purified water, WFI (Water for Injection) storage and distribution systems
●Cooling systems
Applicable Media
Liquid materials, viscous slurries, low-concentration acid/alkaline cleaning fluids, sterile pure water, fermentation broths, oil-based emulsions, alcohol solvents
Factory Testing Items
● Raw material spectrum inspection for stainless steel components
●Surface roughness detection of all wetted parts
●Water pressure shell strength test at 1.5 times nominal pressure
●Air tightness leakage test for valve cavity and stem
●CIP high-temperature circulation aging simulation test for seals
