Hygienic regulating full cavity ball valve 3A, 316L Stainless Steel

SY-BLVN

Sangyie Hygienic regulating full cavity ball valves are are widely used in fluid control systems and achieve remote automatic control. The intelligent positioner is a valve opening regulator based on microprocessor control. Opening of the valve can be set by external input signals.
Hygienic regulating full cavity ball valves are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.

Quantity:

Contact Now

Hygienic regulating full cavity ball valves are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.

Hygienic regulating full cavity ball valve Technical features

●Zero dead leg hygienic design, Full cavity without dead point, non-retention

● Complete CIP & SIP adaptability

● High flow rates

● Full port

● Low pressure drop

● Low flow resistance

●Full cavity without dead point, non-retention

● Small torque

● High operating pressure

● High temperature

● Long service life

● Inlet & outlet interchangeable with any connection types

● Production process complies with 3A, DIN, ISO sanitary valve norms

Hygienic regulating full cavity ball valve Technical parameters

Stock size	1/2" ~6", DN10 ~ DN150
Temperature	Working temperature	PTFE, -20 ~ 150°C, -4 ~302°F Other materials are available upon request
	Sterilization temperature	200°C, 392°F, Max. 20 min
Working pressure	1/2" ~2 1/2", DN10 ~ DN65	vacuum to16bar,232psi
	3" ~4", DN80 ~ DN100	vacuum to 8bar, 116psi
	5" ~6", DN125 ~ DN150	vacuum to 6bar,87psi
Surface finish	Internal Ra≤16µin, 0.4µm
Pipe joint standard	DIN, SMS, BS / RJT, 3A, ISO / IDF
Connection type	welded, clamped, threaded, flanged,or others upon request

Materials

●Medium wetted steel parts EN 1.4301 (AISI 304) or EN 1.4404 & EN 1.4435(AISI 316L)

● Other St. St. Parts EN1.4301 (AISI 304)

●Medium wetted gasket PTFE, EPDM

●Other gasket PTFE, NBR

Options

●Mechanical type

●Intelligent type

●Explosion-proof type

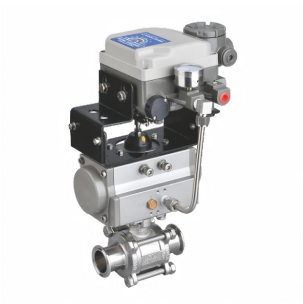

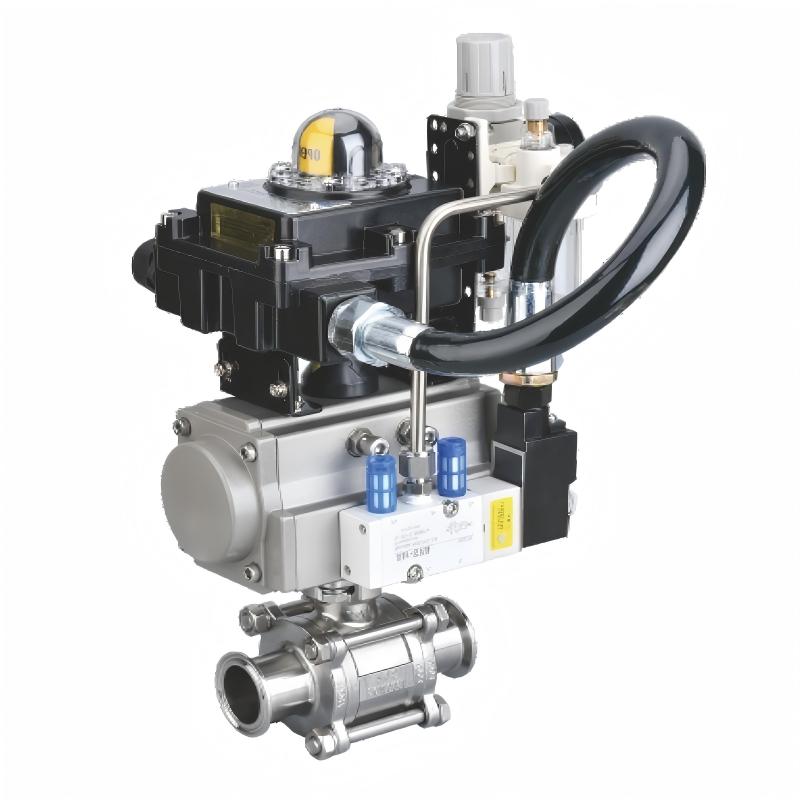

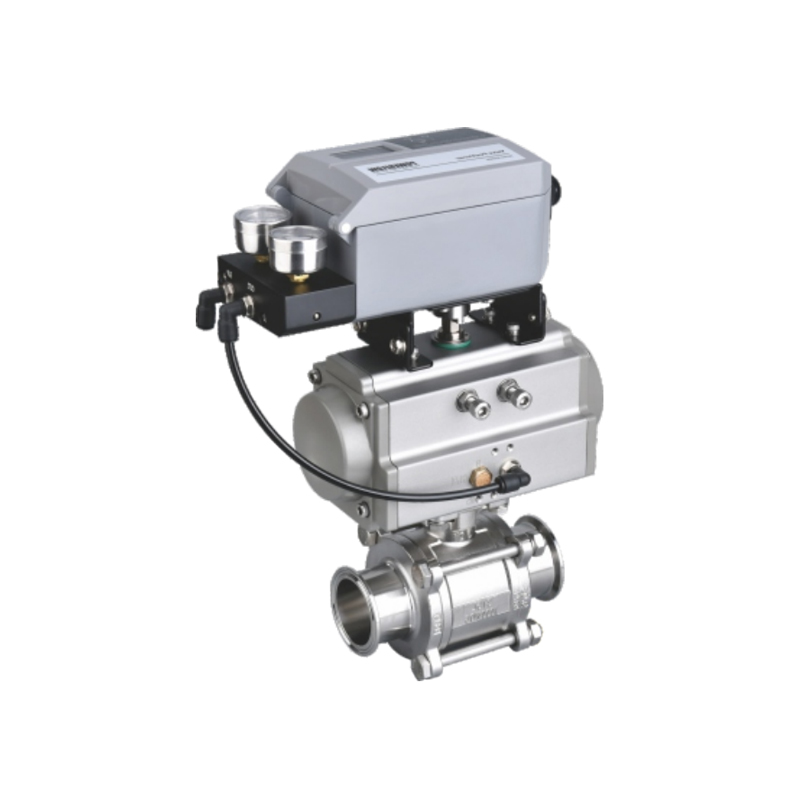

Mechanical type regulating ball valve	Intelligent type regulating ball valve	Explosion-proof regulating ball valve

Application Sectors

●Dairy industry: Milk storage tanks, yogurt fermentation tanks, cream mixing vessels

●Beverage & food: Juice, wine, beer, syrup, edible oil, sauce processing tanks

●Pharmaceutical & biotech: API preparation tanks, sterile liquid storage, cell culture bioreactors

●Cosmetic & personal care: Lotion, essence, cream, shampoo blending tanks

●Water treatment: Purified water, WFI (Water for Injection) storage and distribution systems

●Cooling systems

Applicable Media

Liquid materials, viscous slurries, low-concentration acid/alkaline cleaning fluids, sterile pure water, fermentation broths, oil-based emulsions, alcohol solvents

Factory Testing Items

● Raw material spectrum inspection for stainless steel components

●Surface roughness detection of all wetted parts

●Water pressure shell strength test at 1.5 times nominal pressure

●Air tightness leakage test for valve cavity and stem

●CIP high-temperature circulation aging simulation test for seals
