Hygienic weld elbow BS/RJT 316L Stainless Steel
SY-FEB
Sangyie Hygienic weld elbows are used for pipelines and equipment that can be cleaned in place (CIP). Normally, Sangyie manufacture weld elbows in 1.4301 (AISI 304) or 1.4404 (AISI 316L) from size 1/2" DN10 to size 6" DN150. Hygienic weld elbows and fittings are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Quantity:
Sangyie Hygienic weld elbows are used for pipelines and equipment that can be cleaned in place (CIP). Normally, Sangyie manufacture weld elbows in EN 1.4301 (AISI 304), EN 1.4404, EN 1.4435(AISI 316L) from size 1/2" DN10 to size 6" DN150. Hygienic weld elbows and fittings are widely used in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Hygienic weld elbow Technical parameters
Stock size | 1/2" ~ 6", DN10 ~ DN150 |
Material | EN 1.4301 (AISI 304) or EN 1.4404 & EN 1.4435(AISI 316L) |
Surface finish | Mechanical polished, Electro polished, Pickled |
Pipe joint standard | DIN, SMS, BS / RJT, 3A, ISO / IDF |
Connection type | welded |
Hygienic weld elbow Data sheet

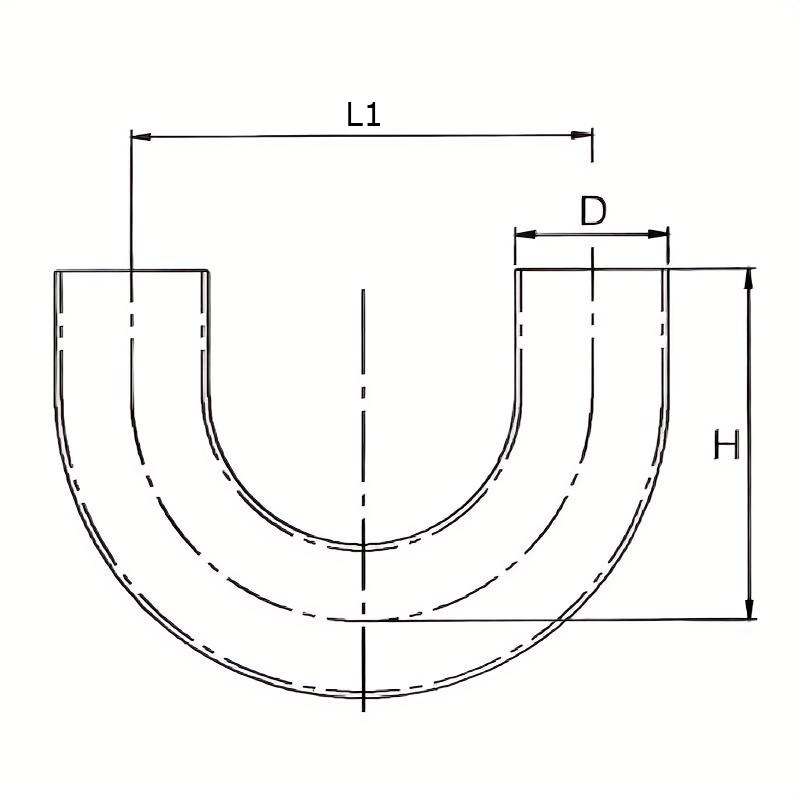

3A elbow 180°
3A elbow 180°
| Model no | Size | D | L1 | H | T |
| SY-FEB41110050 | 1/2" | 12.7 | 52 | 26 | 1.65 |
| SY-FEB41110075 | 3/4" | 19.1 | 70 | 35 | 1.65 |
| SY-FEB41110100 | 1" | 25.4 | 76.2 | 38.1 | 1.65 |
| SY-FEB41110125 | 1 1/4" | 31.8 | 95.3 | 47.7 | 1.65 |
| SY-FEB41110150 | 1 1/2" | 38.1 | 114.3 | 57.2 | 1.65 |
| SY-FEB41110200 | 2" | 50.8 | 152.4 | 76.2 | 1.65 |
| SY-FEB41110250 | 2 1/2" | 63.5 | 190.5 | 95.3 | 1.65 |
| SY-FEB41110300 | 3" | 76.2 | 228.6 | 114.3 | 1.65 |
| SY-FEB41110400 | 4" | 101.6 | 304.8 | 152.4 | 2.1 |
| SY-FEB41110500 | 5" | 127 | 381 | 200.5 | 2.1 |
| SY-FEB41110600 | 6" | 152.4 | 457.2 | 238.6 | 2.77 |
DIN elbow 180°
SMS elbow 180°
| Model no | Size | D | L1 | H | T |
| SY-FEB61120010 | DN10 | 12/13 | 52 | 26 | 1.5 |
| SY-FEB61120015 | DN15 | 18/19 | 70 | 35 | 1.5 |
| SY-FEB61120020 | DN20 | 22/23 | 80 | 40 | 1.5 |
| SY-FEB61120025 | DN25 | 28/29 | 100 | 50 | 1.5 |
| SY-FEB61120032 | DN32 | 34/35 | 110 | 55 | 1.5 |
| SY-FEB61120040 | DN40 | 40/41 | 120 | 60 | 1.5 |
| SY-FEB61120050 | DN50 | 52/53 | 140 | 70 | 1.5 |
| SY-FEB61120065 | DN65 | 70 | 160 | 80 | 2.0 |
| SY-FEB61120080 | DN80 | 85 | 180 | 90 | 2.0 |
| SY-FEB61120100 | DN100 | 104 | 200 | 100 | 2.0 |
SMS elbow 180°
| Model no | Size | D | L1 | H | T |
| SY-FEB41130025 | 25 | 25.4 | 76.2 | 38.1 | 1.5 |
| SY-FEB41130032 | 32 | 31.8 | 95.3 | 47.7 | 1.5 |
| SY-FEB41130038 | 38 | 38.1 | 114.3 | 57.2 | 1.5 |
| SY-FEB41130051 | 51 | 50.8 | 152.4 | 76.2 | 1.5 |
| SY-FEB41130063 | 63.5 | 63.5 | 190.5 | 95.3 | 2.0 |
| SY-FEB41130076 | 76 | 76.2 | 228.6 | 114.3 | 2.0 |
| SY-FEB41130102 | 102 | 101.6 | 304.8 | 152.4 | 2.0 |
