Sterile 3-way diaphragm valve ASME BPE, 316L Stainless Steel
SY-DV3
Sangyie Sterile 3-way diaphragm valves are widely used in food and biopharmaceutical as well as semiconductor ultrapure industry, microelectronics industry and fine chemical industry. Sterile 3-way diaphragm valves are excellent for preventing bacterial growth and focusing on cleaning & sterilization. Per static sealing Sterile 3-way diaphragm valves, the sealing components are not abrasive and the structure is without dead points, as a result, the valves are more hygienic and more durable.
Quantity:
Sangyie Sterile 3-way diaphragm valves are widely used in food and biopharmaceutical as well as semiconductor ultrapure industry, microelectronics industry and fine chemical industry. Sterile 3-way diaphragm valves are excellent for preventing bacterial growth and focusing on cleaning & sterilization. Per static sealing Sterile 3-way diaphragm valves, the sealing components are not abrasive and the structure is without dead points, as a result, the valves are more hygienic and more durable.
Sterile 3-way diaphragm valve Operating principles
● The diaphragm of Sterile 3-way diaphragm valve provides the body seal as well as the seat seal. There are no paths to the outside environment, so the valve is suitable for Sterile processes.
● When the valve is being closed, the pressure pad which supports the diaphragm is being moved towards the sealing face of valve body. When the pressure plad is being moved towards the sealing face of valve body, the diaphragm is being flexed and is forced down onto the seat area in the centre of valve body, thus, the valve is closed.
● Mutual relation between valve body and pressure pad prevents over compression to the diaphragm.
● Sterile 3-way diaphragm valve can be opened or closed either manually or pneumatically, also by control unit and solenoid valve.
Sterile 3-way diaphragm valve Technical features
● Excellent for flow control and sterile applications
● Easier to be cleaned up, comparing to other valves
● Perfect used for media with particles
● Less cavitas when used for flow control
● Valve body and diaphragm are available in different materials and versions
● Cavity free and self-draining

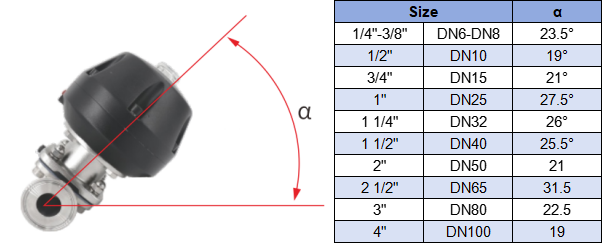

** In order to achieve perfect self-draining, for long pipeline, the valve is suggested to be installed by α° as below to make sure complete self-draining in the whole system.
● Valve body and diaphragm are available in different materials and versions
● Sealing between lug boss around the valve body and raised ribs at corresponding position of the diaphragm ensure the diaphragm can be sealed well with valve body either the valve is opened or closed. As a result, the valve can be drainable completely and can be cleaned easily, meeting EHEDG design standard.
● Available in all common connection sizes and variants integrated locking
● Minimum and maximum stroke limitation
● Production process complies with ASME BPE, 3A, DIN, ISO sanitary valve norms
Sterile 3-way diaphragm valve Technical parameters
Stock size | 1/4" ~ 4", DN8 ~ DN100 | |
Temperature | Working temperature | EPDM, -10 ~ 130°C, 14 ~ 266°F EPDM+PTFE, -10 ~ 150°C, 14 ~ 302°F |
Sterilization temperature | 150°C, 302°F, Max. 60 min | |
Working pressure | 1/4" ~ 2", DN8 ~ DN50， EPDM | vacuum to10bar, 145psi |
1/4" ~ 2", DN8 ~ DN50， EPDM + PTFE | vacuum to 6bar, 87psi | |
2.5" ~ 4", DN65 ~ DN100, EPDM | vacuum to 8bar, 116psi | |
2.5" ~ 4", DN65 ~ DN100， EPDM + PTFE | vacuum to 5bar, 72psi | |
Surface finish | Internal Ra≤20µin, 0.5µm (SF1); Ra≤15µin, 0.375µm (SF4); External sand-blasted | |
Pipe joint standard | DIN, SMS, BS / RJT, 3A, ISO / IDF, ASME / BPE | |
Connection type | welded, clamped, threaded, flanged, or others upon request | |
Materials
● Valve body EN 1.4435 (ASTM A 351 CF3M) or EN 1.4435 - BN2 (316L) Fe < 0.5% or EN 1.4404 (AISI 316L)

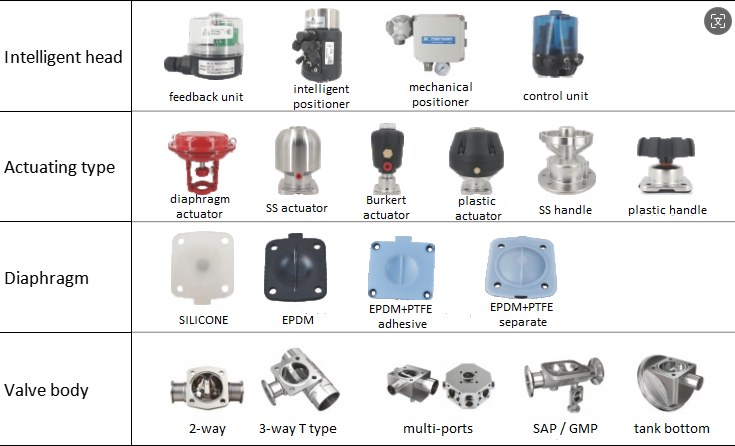

● Diaphragm EPDM, EPDM+PTFE adhesive, EPDM+PTFE separate, SILICONE
Options
Sterile 3-way diaphragm valve Data sheet

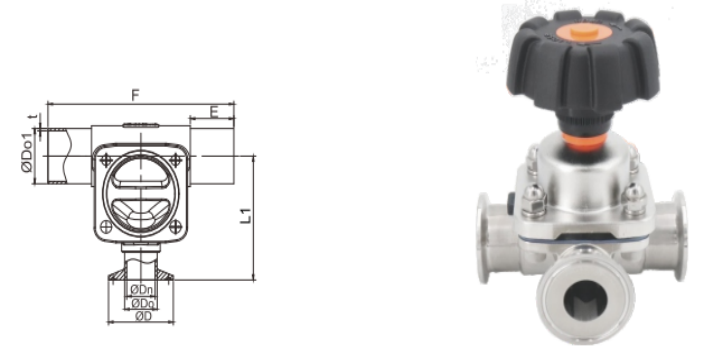

T type
| Model no | Size | Do | Dn | D | Do1 | t | E | F | L1 |
| SY-DV3T1011200P100750075 | 3/4"-3/4" | 19.05 | 15.8 | 25.4 | 19.1 | 1.65 | 30 | 110 | 68 |
| SY-DV3T1011200P100750100 | 3/4"-1 | 19.05 | 15.8 | 25.4 | 25.4 | 1.65 | 30 | 110 | 70 |
| SY-DV3T1011200P100750150 | 3/4"-1 12" | 19.05 | 15.8 | 25.4 | 38.1 | 1.65 | 30 | 110 | 77 |
| SY-DV3T1011200P100750200 | 3/4"-2" | 19.05 | 15.8 | 25.4 | 50.8 | 1.65 | 35 | 120 | 83 |
| SY-DV3T1011200P101000100 | 1"-1" | 25.4 | 22.1 | 50.5 | 25.4 | 1.65 | 30 | 134 | 82 |
| SY-DV3T1011200P101000150 | 1"-1 1/2" | 25.4 | 22.1 | 50.5 | 38.1 | 1.65 | 30 | 134 | 92 |
| SY-DV3T1011200P101000200 | 1"-2" | 25.4 | 22.1 | 50.5 | 50.8 | 1.65 | 35 | 144 | 95 |
| SY-DV3T1011200P101000250 | 1"-2 1/2" | 25.4 | 22.1 | 50.5 | 63.5 | 1.65 | 35 | 144 | 100 |
| SY-DV3T1011200P101250125 | 1 1/4"-1 1/4" | 31.8 | 28.5 | 50.5 | 31.8 | 1.65 | 30 | 162 | 108 |
| SY-DV3T1011200P101250150 | 1 1/4"-1 1/2" | 31.8 | 28.5 | 50.5 | 38.1 | 1.65 | 30 | 162 | 111 |
| SY-DV3T1011200P101250200 | 1 1/4"-2" | 31.8 | 28.5 | 50.5 | 50.8 | 1.65 | 35 | 172 | 114 |
| SY-DV3T1011200P101250250 | 1 1/4"-2 1/2" | 31.8 | 28.5 | 50.5 | 63.5 | 1.65 | 35 | 172 | 120 |
| SY-DV3T1011200P101500150 | 1 1/2"-1 1/2" | 38.1 | 34.8 | 50.5 | 38.1 | 1.65 | 30 | 162 | 111 |
| SY-DV3T1011200P101500200 | 1 1/2"-2" | 38.1 | 34.8 | 50.5 | 50.8 | 1.65 | 35 | 172 | 114 |
| SY-DV3T1011200P101500250 | 1 1/2"-2 1/2" | 38.1 | 34.8 | 50.5 | 63.5 | 1.65 | 35 | 172 | 120 |
| SY-DV3T1011200P102000200 | 2"-2" | 50.8 | 47.5 | 64 | 50.8 | 1.65 | 35 | 195 | 139 |
| SY-DV3T1011200P102000250 | 2"-2 1/2" | 50.8 | 47.5 | 64 | 63.5 | 1.65 | 35 | 195 | 141 |
| SY-DV3T1011200P102500250 | 2 1/2"-2 1/2" | 63.5 | 60.2 | 77.5 | 63.5 | 1.65 | 35 | 195 | 141 |
| SY-DV3T1011200P102500300 | 2 1/2"-3" | 63.5 | 60.2 | 77.5 | 76.2 | 1.65 | 40 | 205 | 147 |
| SY-DV3T1011200P103000300 | 3"-3" | 76.2 | 72.9 | 91 | 76.2 | 1.65 | 171 | 264 | 171 |
| SY-DV3T1011200P200200020 | DN20-DN20 | 22/23 | 19/20 | 34 | 22/23 | 1.5 | 30 | 110 | 68 |
| SY-DV3T1011200P200200025 | DN20-DN25 | 22/23 | 19/20 | 34 | 28/29 | 1.5 | 30 | 110 | 70 |
| SY-DV3T1011200P200200040 | DN20-DN40 | 22/23 | 19/20 | 34 | 40/41 | 1.5 | 30 | 110 | 77 |
| SY-DV3T1011200P200200050 | DN20-DN50 | 22/23 | 19/20 | 34 | 52/53 | 1.5 | 35 | 120 | 83 |
| SY-DV3T1011200P200250025 | DN25-DN25 | 28/29 | 25/26 | 50.5 | 28/29 | 1.5 | 30 | 134 | 82 |
| SY-DV3T1011200P200250040 | DN25-DN40 | 28/29 | 25/26 | 50.5 | 40/41 | 1.5 | 30 | 134 | 92 |
| SY-DV3T1011200P200250050 | DN25-DN50 | 28/29 | 25/26 | 50.5 | 52/53 | 1.5 | 35 | 144 | 95 |
| SY-DV3T1011200P200250065 | DN25-DN65 | 28/29 | 25/26 | 50.5 | 70 | 2.0 | 35 | 144 | 100 |
| SY-DV3T1011200P200320032 | DN32-DN32 | 34/35 | 31/32 | 50.5 | 34/35 | 1.5 | 30 | 162 | 108 |
| SY-DV3T1011200P200320040 | DN32-DN40 | 34/35 | 31/32 | 50.5 | 40/41 | 1.5 | 30 | 162 | 111 |
| SY-DV3T1011200P200320050 | DN32-DN50 | 34/35 | 31/32 | 50.5 | 52/53 | 1.5 | 35 | 172 | 114 |
| SY-DV3T1011200P200320065 | DN32-DN65 | 34/35 | 31/32 | 50.5 | 70 | 2.0 | 35 | 172 | 120 |
| SY-DV3T1011200P200400040 | DN40-DN40 | 40/41 | 37/38 | 50.5 | 40/41 | 1.5 | 30 | 162 | 111 |
| SY-DV3T1011200P200400050 | DN40-DN50 | 40/41 | 37/38 | 50.5 | 52/53 | 1.5 | 35 | 172 | 114 |
| SY-DV3T1011200P200400065 | DN40-DN65 | 40/41 | 37/38 | 50.5 | 70 | 2.0 | 35 | 172 | 120 |
| SY-DV3T1011200P200500050 | DN50-DN50 | 52/53 | 49/50 | 64 | 52/53 | 1.5 | 35 | 195 | 139 |
| SY-DV3T1011200P200500065 | DN50-DN65 | 52/53 | 49/50 | 64 | 70 | 2.0 | 35 | 195 | 141 |
| SY-DV3T1011200P200650065 | DN65-DN65 | 70 | 66 | 91 | 70 | 2.0 | 35 | 195 | 141 |
| SY-DV3T1011200P200650080 | DN65-DN80 | 70 | 66 | 91 | 85 | 2.0 | 40 | 205 | 147 |
| SY-DV3T1011200P200800080 | DN80-DN80 | 85 | 81 | 106 | 85 | 2.0 | 171 | 264 | 171 |

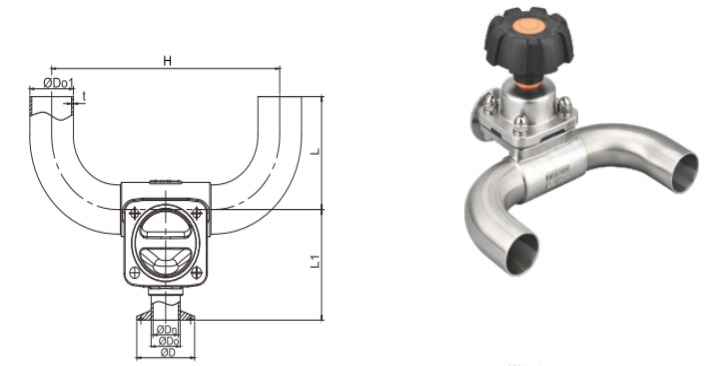

UC type
| Model no | Size | Do | Dn | D | Do1 | t | H | L | L1 |
| SY-DV3UC1011200P100750075 | 3/4"-3/4" | 19.05 | 15.8 | 25.4 | 19.1 | 1.65 | 30 | 110 | 68 |
| SY-DV3UC1011200P100750100 | 3/4"-1 | 19.05 | 15.8 | 25.4 | 25.4 | 1.65 | 30 | 110 | 70 |
| SY-DV3UC1011200P100750150 | 3/4"-1 12" | 19.05 | 15.8 | 25.4 | 38.1 | 1.65 | 30 | 110 | 77 |
| SY-DV3UC1011200P100750200 | 3/4"-2" | 19.05 | 15.8 | 25.4 | 50.8 | 1.65 | 35 | 120 | 83 |
| SY-DV3UC1011200P101000100 | 1"-1" | 25.4 | 22.1 | 50.5 | 25.4 | 1.65 | 30 | 134 | 82 |
| SY-DV3UC1011200P101000150 | 1"-1 1/2" | 25.4 | 22.1 | 50.5 | 38.1 | 1.65 | 30 | 134 | 92 |
| SY-DV3UC1011200P101000200 | 1"-2" | 25.4 | 22.1 | 50.5 | 50.8 | 1.65 | 35 | 144 | 95 |
| SY-DV3UC1011200P101000250 | 1"-2 1/2" | 25.4 | 22.1 | 50.5 | 63.5 | 1.65 | 35 | 144 | 100 |
| SY-DV3UC1011200P101250125 | 1 1/4"-1 1/4" | 31.8 | 28.5 | 50.5 | 31.8 | 1.65 | 30 | 162 | 108 |
| SY-DV3UC1011200P101250150 | 1 1/4"-1 1/2" | 31.8 | 28.5 | 50.5 | 38.1 | 1.65 | 30 | 162 | 111 |
| SY-DV3UC1011200P101250200 | 1 1/4"-2" | 31.8 | 28.5 | 50.5 | 50.8 | 1.65 | 35 | 172 | 114 |
| SY-DV3UC1011200P101250250 | 1 1/4"-2 1/2" | 31.8 | 28.5 | 50.5 | 63.5 | 1.65 | 35 | 172 | 120 |
| SY-DV3UC1011200P101500150 | 1 1/2"-1 1/2" | 38.1 | 34.8 | 50.5 | 38.1 | 1.65 | 30 | 162 | 111 |
| SY-DV3UC1011200P101500200 | 1 1/2"-2" | 38.1 | 34.8 | 50.5 | 50.8 | 1.65 | 35 | 172 | 114 |
| SY-DV3UC1011200P101500250 | 1 1/2"-2 1/2" | 38.1 | 34.8 | 50.5 | 63.5 | 1.65 | 35 | 172 | 120 |
| SY-DV3UC1011200P102000200 | 2"-2" | 50.8 | 47.5 | 64 | 50.8 | 1.65 | 35 | 195 | 139 |
| SY-DV3UC1011200P102000250 | 2"-2 1/2" | 50.8 | 47.5 | 64 | 63.5 | 1.65 | 35 | 195 | 141 |
| SY-DV3UC1011200P102500250 | 2 1/2"-2 1/2" | 63.5 | 60.2 | 77.5 | 63.5 | 1.65 | 35 | 195 | 141 |
| SY-DV3UC1011200P102500300 | 2 1/2"-3" | 63.5 | 60.2 | 77.5 | 76.2 | 1.65 | 40 | 205 | 147 |
| SY-DV3UC1011200P103000300 | 3"-3" | 76.2 | 72.9 | 91 | 76.2 | 1.65 | 171 | 264 | 171 |
| SY-DV3UC1011200P200200020 | DN20-DN20 | 22/23 | 19/20 | 34 | 22/23 | 1.5 | 30 | 110 | 68 |
| SY-DV3UC1011200P200200025 | DN20-DN25 | 22/23 | 19/20 | 34 | 28/29 | 1.5 | 30 | 110 | 70 |
| SY-DV3UC1011200P200200040 | DN20-DN40 | 22/23 | 19/20 | 34 | 40/41 | 1.5 | 30 | 110 | 77 |
| SY-DV3UC1011200P200200050 | DN20-DN50 | 22/23 | 19/20 | 34 | 52/53 | 1.5 | 35 | 120 | 83 |
| SY-DV3UC1011200P200250025 | DN25-DN25 | 28/29 | 25/26 | 50.5 | 28/29 | 1.5 | 30 | 134 | 82 |
| SY-DV3UC1011200P200250040 | DN25-DN40 | 28/29 | 25/26 | 50.5 | 40/41 | 1.5 | 30 | 134 | 92 |
| SY-DV3UC1011200P200250050 | DN25-DN50 | 28/29 | 25/26 | 50.5 | 52/53 | 1.5 | 35 | 144 | 95 |
| SY-DV3UC1011200P200250065 | DN25-DN65 | 28/29 | 25/26 | 50.5 | 70 | 2.0 | 35 | 144 | 100 |
| SY-DV3UC1011200P200320032 | DN32-DN32 | 34/35 | 31/32 | 50.5 | 34/35 | 1.5 | 30 | 162 | 108 |
| SY-DV3UC1011200P200320040 | DN32-DN40 | 34/35 | 31/32 | 50.5 | 40/41 | 1.5 | 30 | 162 | 111 |
| SY-DV3UC1011200P200320050 | DN32-DN50 | 34/35 | 31/32 | 50.5 | 52/53 | 1.5 | 35 | 172 | 114 |
| SY-DV3UC1011200P200320065 | DN32-DN65 | 34/35 | 31/32 | 50.5 | 70 | 2.0 | 35 | 172 | 120 |
| SY-DV3UC1011200P200400040 | DN40-DN40 | 40/41 | 37/38 | 50.5 | 40/41 | 1.5 | 30 | 162 | 111 |
| SY-DV3UC1011200P200400050 | DN40-DN50 | 40/41 | 37/38 | 50.5 | 52/53 | 1.5 | 35 | 172 | 114 |
| SY-DV3UC1011200P200400065 | DN40-DN65 | 40/41 | 37/38 | 50.5 | 70 | 2.0 | 35 | 172 | 120 |
| SY-DV3UC1011200P200500050 | DN50-DN50 | 52/53 | 49/50 | 64 | 52/53 | 1.5 | 35 | 195 | 139 |
| SY-DV3UC1011200P200500065 | DN50-DN65 | 52/53 | 49/50 | 64 | 70 | 2.0 | 35 | 195 | 141 |
| SY-DV3UC1011200P200650065 | DN65-DN65 | 70 | 66 | 91 | 70 | 2.0 | 35 | 195 | 141 |
| SY-DV3UC1011200P200650080 | DN65-DN80 | 70 | 66 | 91 | 85 | 2.0 | 40 | 205 | 147 |
| SY-DV3UC1011200P200800080 | DN80-DN80 | 85 | 81 | 106 | 85 | 2.0 | 171 | 264 | 171 |
