Aseptic diaphragm valve ASME BPE, 316L Stainless Steel

SY-DV210
Sangyie aseptic diaphragm valves are excellent for flow control and sterile applications in hygienic and aseptic processes. Perfect used for pharmaceutical, food and biotechnology industries.
Aseptic diaphragm valves can be opened and closed automatically with pneumatic actuators and electric actuators or manually by handles. The valves can with control unit for open / close, with positioner for accurate flow control.
Quantity:
Contact Now
Sangyie aseptic diaphragm valves are excellent for flow control and sterile applications in hygienic and aseptic processes. Perfect used for pharmaceutical, food and biotechnology industries.
Aseptic diaphragm valves can be opened and closed automatically with pneumatic actuators and electric actuators or manually by handles. The valves can with control unit for open / close, with positioner for accurate flow control.


Aseptic diaphragm valve Operating principles

● The diaphragm of aseptic diaphragm valve provides the body seal as well as the seat seal. There are no paths to the outside environment, so the valve is suitable for aseptic processes.
● When the valve is being closed, the pressure pad which supports the diaphragm is being moved towards the sealing face of valve body. When the pressure pad is being moved towards the sealing face of valve body, the diaphragm is being flexed and is forced down onto the seat area in the centre of valve body, thus, the valve is closed.
● Mutual relation between valve body and pressure pad prevents over compression to the diaphragm.
● Aseptic diaphragm valve can be opened or closed either manually or pneumatically, also by control unit and solenoid valve.


Aseptic diaphragm valve Technical features

● Valve body can be casted or forged
● Excellent for flow control and sterile applications
● Easier to be cleaned up, comparing to other valves
● Perfect used for media with particles
● Less cavitas when used for flow control
● Cavity free and self-draining
** In order to achieve perfect self-draining, for long pipeline, the valve is suggested to be installed by α° as below to make sure complete self-draining in the whole system.
Aseptic diaphragm valves, Sanitary aseptic diaphragm valves for sterile applications, Pharmaceutical diaphragm valves, sanitary valves, hygienic valves, SS valves
● Valve body and diaphragm are available in different materials and versions
● Sealing between lug boss around the valve body and raised ribs at corresponding position of the diaphragm ensure the diaphragm can be sealed well with valve body either the valve is opened or closed. As a result, the valve can be drainable completely and can be cleaned easily, meeting EHEDG design standard.
● Available in all common connection sizes and variants integrated locking
● Minimum and maximum stroke limitation
● Production process complies with ASME BPE, 3A, DIN, ISO sanitary valve norms


Aseptic diaphragm valve Technical parameters

Stock size
1/4" ~ 3", DN8 ~ DN80
Temperature
Working temperature
EPDM, -10 ~ 130°C, 14 ~ 266°F
EPDM+PTFE, -10 ~ 150°C, 14 ~ 302°F
Sterilization temperature
150°C, 302°F, Max. 60 min
Working pressure
1/4" ~ 2", DN8 ~ DN50，EPDM
vacuum to10bar, 145psi
1/4" ~ 2", DN8 ~ DN50，EPDM + PTFE
vacuum to 6bar, 87psi
2.5" ~ 3", DN65 ~ DN80, EPDM
vacuum to 8bar, 116psi
2.5" ~ 3", DN65 ~ DN80，EPDM + PTFE
vacuum to 5bar, 72psi
Surface finish
Internal Ra≤20µin, 0.5µm (SF1); Ra≤15µin, 0.375µm (SF4);
External sand-blasted
Pipe joint standard
DIN, SMS, BS / RJT, 3A, ISO / IDF, ASME / BPE
Connection type
welded, clamped, threaded, flanged,or others upon request

Materials
●Valve body EN 1.4435 (ASTM A 351 CF3M) or EN 1.4435 - BN2 (316L) Fe < 0.5% or EN 1.4404 (AISI 316L)
●DiaphragmEPDM,EPDM+PTFE adhesive, EPDM+PTFE separate, SILICONE

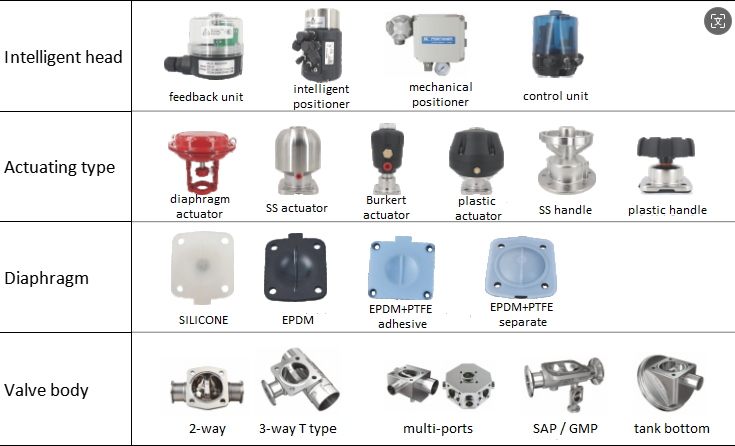

Options
Aseptic diaphragm valves, Sanitary aseptic diaphragm valves for sterile applications, Pharmaceutical diaphragm valves, sanitary valves, hygienic valves, SS valves

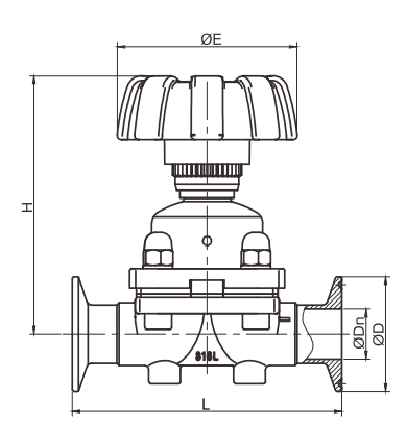

Aseptic diaphragm valve Data sheet

                              Aseptic diaphragm valves, Sanitary aseptic diaphragm valves for sterile applications, Pharmaceutical diaphragm valves, sanitary valves, hygienic valves, SS valves
Model noSizeDoDnDELH
SY-DV2102200P100251/4"6.354.325.43663.565
SY-DV2102200P100383/8"9.57.525.43663.565
SY-DV2102200P100501/2"12.79.425.436/6563.5/10865/73
SY-DV2102200P100753/4"19.0515.850.565/85117/12775/113
SY-DV2102200P101001"25.422.150.585127115
SY-DV2102200P101251 1/4"31.828.550.5105146133
SY-DV2102200P101501 1/2"38.134.850.5105159135
SY-DV2102200P102002"50.847.564125190156
SY-DV2102200P102502 1/2"63.560.277.5125/210190/265160/250
SY-DV2102200P103003"76.272.991210265256
SY-DV2102200P104004"101.697.4119210340268
SY-DV2102200P20008DN8108343663.565
SY-DV2102200P20010DN1012/139/10343663.565
SY-DV2102200P20015DN1518/1915/163436/6563.5/10865/73
SY-DV2102200P20020DN2022/2319/203465/85117/12775/113
SY-DV2102200P20025DN2528/2925/2650.585127115
SY-DV2102200P20032DN3234/3531/3250.5105146133
SY-DV2102200P20040DN4040/4137/3850.5105159135
SY-DV2102200P20050DN5052/5349/5064125190156
SY-DV2102200P20065DN65706691125/210190/265160/250
SY-DV2102200P20080DN808581106210265256
SY-DV2102200P20100DN100104100119210340268

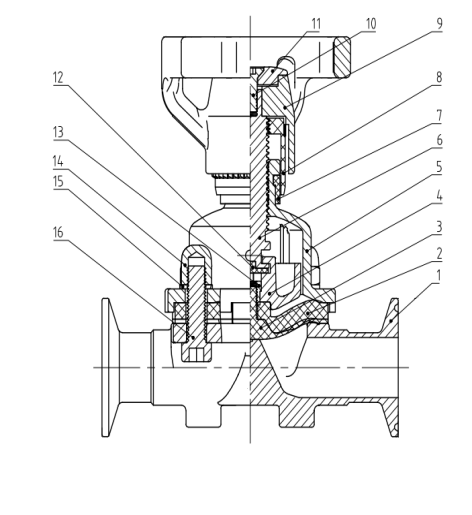

Aseptic diaphragm valve Parts list

Aseptic diaphragm valves, Sanitary aseptic diaphragm valves for sterile applications, Pharmaceutical diaphragm valves, sanitary valves, hygienic valves, SS valves
No.DescriptionQuantity
1valve body1
2diaphragm EPDM + PTFE1
3
4slip piece1
5bonnet1
6valve shaft1
7position indicator ring1
9SS handle1
10screw1
11cover for SS handle1
14acorn nut4
15spring wahser4
16bolt4
Application Sectors
●Dairy industry: Milk storage tanks, yogurt fermentation tanks, cream mixing vessels
●Beverage & food: Juice, wine, beer, syrup, edible oil, sauce processing tanks
●Pharmaceutical & biotech: API preparation tanks, sterile liquid storage, cell culture bioreactors
●Cosmetic & personal care: Lotion, essence, cream, shampoo blending tanks
●Water treatment: Purified water, WFI (Water for Injection) storage and distribution systems
●Cooling systems
Applicable Media
Liquid materials, viscous slurries, low-concentration acid/alkaline cleaning fluids, sterile pure water, fermentation broths, oil-based emulsions, alcohol solvents
Factory Testing Items
● Raw material spectrum inspection for stainless steel components
●Surface roughness detection of all wetted parts
●Water pressure shell strength test at 1.5 times nominal pressure
●Air tightness leakage test for valve cavity and stem
●CIP high-temperature circulation aging simulation test for seals
