Overall view of Sangyie Technology's Sanitary single seat diverter valve

Sanitary single seat diverter valve 3A, 316L Stainless Steel

SY-SSV10

Sangyie Sanitary single seat diverter valves are robust and reliable, with single plug design. Whether used for shutoff or changeover, these compact & modular valves are ideal for use wherever high standards of hygiene are required across heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.

Quantity:

Contact Now

SangyieSanitary single seat diverter valves are robust and reliable, with single plug design.Whether used for shutoff or changeover, these compact& modular valves are ideal for use wherever high standards of hygiene are required across heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.

Sanitary single seat diverter valve Technical features

●Safe, hygienic, clean

●Separated valve bodies, inlet & outlet interchangeableaccording to requirements

●Single plug design ensures to meet process requirements for tight shutoff, superior hygiene, process safety and medium safety

●High reliability

●Easy to install, align and service

●Wide range of flow rates

●Easily upgrade

● Production process complies with 3A, DIN, ISO sanitary valve norms

Sanitary single seat diverter valve Technical parameters

Stock size	1"~ 4", DN25 ~ DN100
Working temperature	EPDM, -10 ~ 120°C,14 ~ 248°F Other materials are available upon request
Max working pressure	vacuum to10bar, 145psi
Surface finish	Internal Ra16-32µin, 0.4-0.8µm Externalsand-blasted or matt
Pipe joint standard	DIN, SMS, BS / RJT, 3A, ISO / IDF, ASME / BPE
Connection type	welded, clamped, threaded, flanged,or others upon request

Materials

●Valve body EN 1.4301 (AISI 304) or EN 1.4404 & EN 1.4435(AISI 316L)

● Valve seat/seal EPDM, SILICONE, FKM

Options

● Single-acting pneumatic actuator

● Double-acting pneumatic actuator

● Inductive position sensors

● C-TOP control unit

●Positioner

●Manualhandle

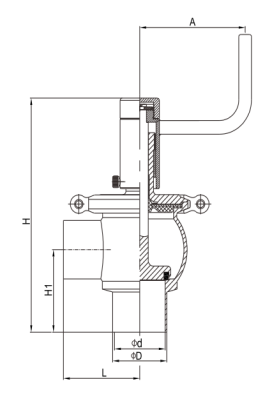

Sanitary single seat diverter valve Data sheet

Sanitary single seat diverter valves, Manual single seat valves, Hygienic SS diverter valves, sanitary valves, hygienic valves, SS valves

Model no	Size	D	d	L	H	H1	A
SY-SSV10L11004E10100	1"	25.4	22.1	72	204	72	100
SY-SSV10L11004E10125	1 1/4"	31.8	28.5	72	204	72	100
SY-SSV10L11004E10150	1 1/2"	38.1	34.8	72	204	72	100
SY-SSV10L11004E10200	2"	50.8	47.5	72	204	72	100
SY-SSV10L11004E10250	2 1/2"	63.5	60.2	80	213	75	100
SY-SSV10L11004E10300	3"	76.2	72.9	98	258	98	125
SY-SSV10L11004E10400	3 1/2"	88.9	84.9	107	272	107	125
SY-SSV10L11004E10400	4"	101.6	97.4	135	300	127	125
SY-SSV10L11004E20025	DN25	28/29	25/26	72	204	72	100
SY-SSV10L11004E20032	DN32	34/35	31/32	72	204	72	100
SY-SSV10L11004E20040	DN40	40/41	37/38	72	204	72	100
SY-SSV10L11004E20050	DN50	52/53	49/50	72	204	72	100
SY-SSV10L11004E20065	DN65	70	66	97	252	97	125
SY-SSV10L11004E20080	DN80	85	81	107	272	107	125
SY-SSV10L11004E20100	DN100	104	100	135	300	127	125

Application Sectors

●Dairy industry: Milk storage tanks, yogurt fermentation tanks, cream mixing vessels

●Beverage & food: Juice, wine, beer, syrup, edible oil, sauce processing tanks

●Pharmaceutical & biotech: API preparation tanks, sterile liquid storage, cell culture bioreactors

●Cosmetic & personal care: Lotion, essence, cream, shampoo blending tanks

●Water treatment: Purified water, WFI (Water for Injection) storage and distribution systems

●Cooling systems

Applicable Media

Liquid materials, viscous slurries, low-concentration acid/alkaline cleaning fluids, sterile pure water, fermentation broths, oil-based emulsions, alcohol solvents

Factory Testing Items

● Raw material spectrum inspection for stainless steel components

●Surface roughness detection of all wetted parts

●Water pressure shell strength test at 1.5 times nominal pressure

●Air tightness leakage test for valve cavity and stem

●CIP high-temperature circulation aging simulation test for seals
