Overall view of Sangyie Technology's hygienic stainless steel mini single seat diverter valve

Hygienic mini single seat diverter valve DIN 316L Stainless Steel

SY-SSV

Sangyie Hygienic stainless steel mini single seat diverter valves are reliable single seat valves with a single contact surface between the plug and the seat to minimize the risk of contamination. Hygienic stainless steel mini single seat diverter valves are designed for diverting or closing small product flows in a broad range of applications across heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.

Quantity:

Contact Now

Hygienic stainless steel mini single seat diverter valve Technical features

● Small, portable

● Separated valve bodies, inlet & outlet interchangeable according to requirements

● Safe, hygienic, clean

● Single plug design ensures to meet process requirements for tight shutoff, superior hygiene, process safety and medium safety

● Directly checking shaft sealing with open bracket connecting valve body and actuator

● High reliability

● Easy to install, align and service

● Production process complies with 3A, DIN, ISO sanitary valve norms

Materials

● Valve body EN 1.4301 (AISI 304) or EN 1.4404 & EN 1.4435 (AISI 316L)

● Valve seat/seal EPDM, SILICONE, FKM

Options

● Single-acting pneumatic actuator

● Double-acting pneumatic actuator

● Inductive position sensors

● C-TOP control unit

● Positioner

● Manual handle

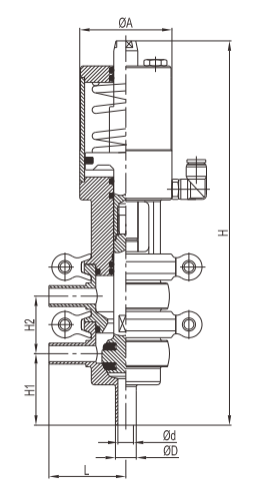

Hygienic stainless steel mini single seat diverter valve Data sheet

Hygienic stainless steel mini single seat diverter valves, Sanitary single seat diverter valves, single seat diverter valves, sanitary valves, hygienic valves, SS valves

Model no	Size	D	d	L	H	H1	H2	A
SY-SSV2CLL111004E10050	1/2"	12.7	9.4	46	234	43	35	56
SY-SSV2CLL111004E10075	3/4"	19.05	15.8	47	252	49	44	56
SY-SSV2CLL111004E20010	DN10	12/13	9/10	46	234	43	35	56
SY-SSV2CLL111004E20015	DN15	18/19	15/16	47	252	49	44	56
SY-SSV2CLL111004E20020	DN20	22/23	19/20	47	252	49	44	56

Application Sectors

●Dairy industry: Milk storage tanks, yogurt fermentation tanks, cream mixing vessels

●Beverage & food: Juice, wine, beer, syrup, edible oil, sauce processing tanks

●Pharmaceutical & biotech: API preparation tanks, sterile liquid storage, cell culture bioreactors

●Cosmetic & personal care: Lotion, essence, cream, shampoo blending tanks

●Water treatment: Purified water, WFI (Water for Injection) storage and distribution systems

●Cooling systems

Applicable Media

Liquid materials, viscous slurries, low-concentration acid/alkaline cleaning fluids, sterile pure water, fermentation broths, oil-based emulsions, alcohol solvents

Factory Testing Items

● Raw material spectrum inspection for stainless steel components

●Surface roughness detection of all wetted parts

●Water pressure shell strength test at 1.5 times nominal pressure

●Air tightness leakage test for valve cavity and stem

●CIP high-temperature circulation aging simulation test for seals
