Sanitary pipe holders SMS 1145 316L Stainless Steel
SY-FPH
Sangyie Sanitary stainless steel pipe holders are designed to securely support and stabilize pipelines in hygienic processing systems. Manufactured in 1.4301 (AISI 304) or 1.4404 (AISI 316L), Sangyie pipe holders are through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc. These stainless steel pipe holders are ideal for use in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries, ensuring reliable and hygienic pipeline installation.
Quantity:
Sangyie Sanitary stainless steel pipe holders are designed to securely support and stabilize pipelines in hygienic processing systems. Manufactured in 1.4301 (AISI 304) or 1.4404 (AISI 316L), Sangyie pipe holders are through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc. These stainless steel pipe holders are ideal for use in heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries, ensuring reliable and hygienic pipeline installation.
Sanitary stainless steel pipe holder Technical parameters
Stock size | 1/2" ~ 8", DN15 ~ DN200 |
Material | EN 1.4301 (AISI 304), EN 1.4404, EN 1.4435(AISI 316L) |
Temperature Range | -20 Degree Celsius~135 Degree Celsius |
Pipe joint standard | DIN, SMS, 3A |
Connection type | clamped,thread,welding |

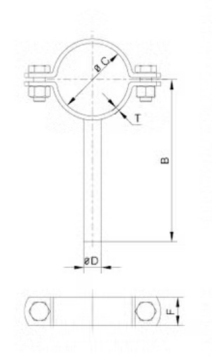

Sanitary stainless steel pipe holder Data sheet
| Model no | Size | B | D | C | F | T |
| SY-FPH010 | DN10 | 63 | 8 | 12 | 14 | 2.0 |
| SY-FPH015 | DN15 | 66 | 8 | 18 | 14 | 2.0 |
| SY-FPH020 | DN20 | 68 | 8 | 22 | 16 | 2.0 |
| SY-FPH025 | DN25 | 7 | 10 | 28 | 16 | 2.0 |
| SY-FPH032 | DN32 | 74 | 10 | 34 | 16 | 2.0 |
| SY-FPH040 | DN40 | 7 | 10 | 40 | 20 | 2.0 |
| SY-FPH050 | DN50 | 83 | 12 | 52 | 20 | 20 |
| SY-FPH065 | DN65 | 92.5 | 12 | 70 | 20 | 25 |
| SY-FPH080 | DN80 | 100 | 12 | 85 | 25 | 25 |
| SY-FPH100 | DN100 | 110 | 12 | 104 | 25 | 3.0 |
| SY-FPH125 | DN125 | 140 | 16 | 129 | 25 | 3.0 |
| SY-FPH150 | DN150 | 152.5 | 16 | 154 | 30 | 3.0 |
