Overall view of Sangyie Technology's Hygienic check valve

Hygienic check valve 3A, 316L Stainless Steel

SY-CKV
Hygienic check valves are also named as hygienic non-return valves. They are spring check valves, managing the flow of process liquids and gases through hygienic process systems to prevent reverse flow.  Hygienic check valves are alomost used in all types of systems through heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.
Quantity:
Contact Now
Hygienic check valves are also named as hygienic non-return valves. They are spring check valves, managing the flow of process liquids and gases through hygienic process systems to prevent reverse flow.  Hygienic check valves are alomost used in all types of systems through heat exchanger, AI liquid cooling systems, food-processing, beverages, brewing, wine, dairy, cosmetic, personal care, pharmaceutical, biotechnology and semiconductor industries.

Hygienic check valve Technical features

● Safe, reliable operation
● Effective cost
● Easy to install, align and service
● Fully automatic
● Fast acting
● Production process complies with 3A, DIN, ISO sanitary valve norms

Hygienic check valve Technical parameters


Available size

1/2" ~ 6", DN15 ~ DN150

Working temperature

EPDM, -10 ~ 120°C,14 ~ 248°F

Other materials are available upon request

Max working pressure

10bar, 145psi

Pipe joint standard

DIN, SMS, BS / RJT, 3A, ISO / IDF, ASME / BPE

Connection type

welded, clamped, threaded, flanged,or others upon request


Materials
● Medium wetted steel parts EN 1.4301 (AISI 304), EN 1.4404, EN 1.4435(AISI 316L)
● Valve seat/seal EPDM, SILICONE, FPM, TEFLON

Hygienic check valve Data sheet

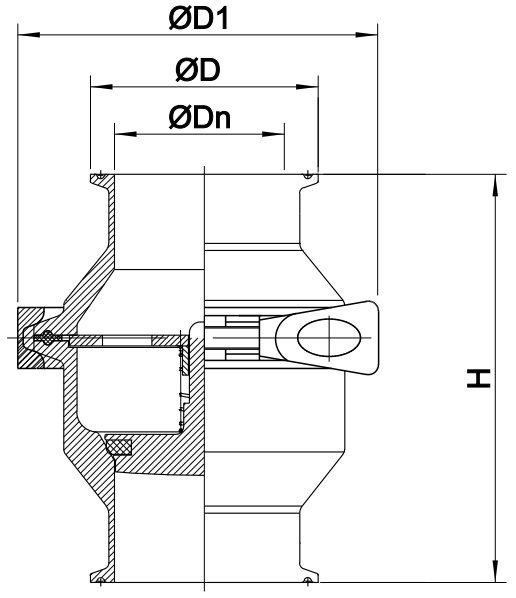

Clamp type clamped
Hygienic check valves, Sanitary check valves, Hygienic stainless steel check valves, sanitary valves, hygienic valves, SS valves
Model noSizeD1DnDH
SY-CKVC224E100501/2"56.59.425.475
SY-CKVC224E100753/4"56.515.825.475
SY-CKVC224E101001"76.522.150.595
SY-CKVC224E101251 1/4"8731.850.595
SY-CKVC224E101501 1/2"8734.850.595
SY-CKVC224E102002"10047.564105
SY-CKVC224E102502 1/2"11560.277.5115
SY-CKVC224E103003"12872.991125
SY-CKVC224E104004"16497.4119137
SY-CKVC224E20015DN155418/193464
SY-CKVC224E20020DN205422/233476
SY-CKVC224E20025DN258728/2950.5114
SY-CKVC224E20032DN328734/3550.5113
SY-CKVC224E20040DN408740/4150.5113
SY-CKVC224E20050DN5010052/5364128
SY-CKVC224E20065DN651157091146
SY-CKVC224E20080DN8012885106156
SY-CKVC224E20100DN100164104119162

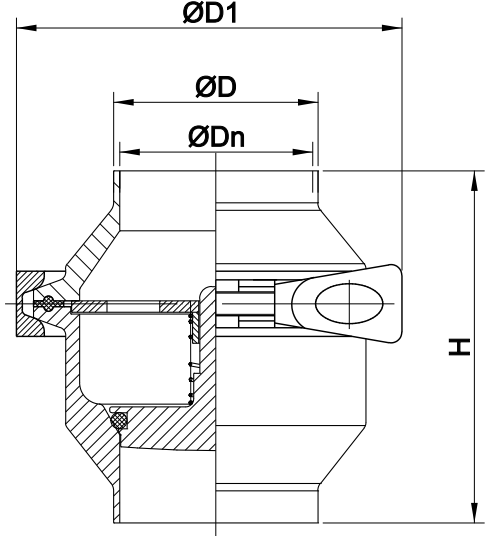

Clamp type welded
Model noSizeD1DnDH
SY-CKVC116E100501/2"56.59.425.475
SY-CKVC116E100753/4"56.515.825.475
SY-CKVC116E101001"76.522.150.595
SY-CKVC116E101251 1/4"8731.850.595
SY-CKVC116E101501 1/2"8734.850.595
SY-CKVC116E102002"10047.564105
SY-CKVC116E102502 1/2"11560.277.5115
SY-CKVC116E103003"12872.991125
SY-CKVC116E104004"16497.4119137
SY-CKVC116E20015DN155418/193464
SY-CKVC116E20020DN205422/233476
SY-CKVC116E20025DN258728/2950.5114
SY-CKVC116E20032DN328734/3550.5113
SY-CKVC116E20040DN408740/4150.5113
SY-CKVC116E20050DN5010052/5364128
SY-CKVC116E20065DN651157091146
SY-CKVC116E20080DN8012885106156
SY-CKVC116E20100DN100164104119162

Union type
Hygienic check valves, Sanitary check valves, Hygienic stainless steel check valves, sanitary valves, hygienic valves, SS valves
Model noSizeD1AH
SY-CKVU224E101001"25.46468
SY-CKVU224E101251 1/4"31.86468
SY-CKVU224E101501 1/2"38.17176
SY-CKVU224E102002"50.88686
SY-CKVU224E102502 1/2"63.5108102
SY-CKVU224E103003"76.2145.3120
SY-CKVU224E104004"101.66468
SY-CKVU224E20025DN2528/296468
SY-CKVU224E20032DN3234/357176
SY-CKVU224E20040DN4040/418686
SY-CKVU224E20050DN5052/53100102
SY-CKVU224E20065DN6570112110
SY-CKVU224E20080DN8085123120
SY-CKVU224E20100DN100104143.5135

Application Sectors
●Dairy industry: Milk storage tanks, yogurt fermentation tanks, cream mixing vessels
●Beverage & food: Juice, wine, beer, syrup, edible oil, sauce processing tanks
●Pharmaceutical & biotech: API preparation tanks, sterile liquid storage, cell culture bioreactors
●Cosmetic & personal care: Lotion, essence, cream, shampoo blending tanks
●Water treatment: Purified water, WFI (Water for Injection) storage and distribution systems
●Cooling systems
Applicable Media
Liquid materials, viscous slurries, low-concentration acid/alkaline cleaning fluids, sterile pure water, fermentation broths, oil-based emulsions, alcohol solvents
Factory Testing Items
● Raw material spectrum inspection for stainless steel components
●Surface roughness detection of all wetted parts
●Water pressure shell strength test at 1.5 times nominal pressure
●Air tightness leakage test for valve cavity and stem
●CIP high-temperature circulation aging simulation test for seals
